Steel Studs, Track, and Metal Framing Components Delivered Directly to your Jobsite Nationwide

The Formetal Company manufactures steel framing components from 10 gauge to 25 Gauge. Descriptions of all products we carry can be found below:

Drywall Studs

Nonstructural Metal Studs and Steel Studs for Superior Interior Framing

Drywall metal studs (also known as steel studs or metal framing studs) are available in material thicknesses from 30 mils down to 15 mils, making them an excellent choice for interior framing applications. These non-load bearing metal studs are ideal for partition walls, drop ceilings, and other interior systems in both residential and commercial construction projects—from basement remodeling to high-rise developments.

Compared to traditional wood framing, steel studs offer exceptional dimensional stability, delivering straight, consistent, and uniform walls that simplify installation and significantly reduce overall construction time. Pre-punched knockouts in our cold formed metal framing products make it easy to run electrical, plumbing, and HVAC utilities, while their inherent fire resistance ensures compliance with strict building codes and enhances overall safety.

In addition to structural advantages, metal stud framing provides outstanding sound reduction and acoustic performance. Steel studs effectively minimize sound transmission—especially in the mid-frequency range of human speech—creating quieter, more comfortable environments. When paired with proper insulation and advanced drywall installation techniques, they help achieve high Sound Transmission Class (STC) ratings, making them a top solution for multi-family housing, offices, hotels, and other commercial buildings where noise control is essential.

From faster installation and fire safety benefits to superior acoustic performance and long-term reliability, drywall metal studs and steel stud framing deliver an efficient, high-quality, and cost-effective framing solution for modern construction.

Stud Name	Track Name	Common Name / Size & Gauge Description
162S125-18	162T125-18	1-5/8″ 25 Gauge stud or track
250S125-18	250T125-18	2-1/2″ 25 Gauge stud or track
362S125-18	362T125-18	3-5/8″ 25 Gauge stud or track
400S125-18	400T125-18	4″ 25 Gauge stud or track
600S125-18	600T125-18	6″ 25 Gauge stud or track
162S125-23	162T125-23	1-⅝″ 20 Gauge EQ stud or track
250S125-23	250T125-23	2-½″ 20 Gauge EQ stud or track
362S125-23	362T125-23	3-⅝″ 20 Gauge EQ stud or track
400S125-23	400T125-23	4″ 20 Gauge EQ stud or track
600S125-23	600T125-23	6″ 20 Gauge EQ stud or track
162S125-30	162T125-30	1-5/8″ 20 Gauge stud or track
250S125-30	250T125-30	2-1/2″ 20 Gauge stud or track
362S125-30	362T125-30	3-5/8″ 20 Gauge stud or track
400S125-30	400T125-30	4″ 20 Gauge stud or track
600S125-30	600T125-30	6″ 20 Gauge stud or track
162S125-33	162T125-33	1-⅝″ 20 Gauge stud or track
250S125-33	250T125-33	2-½″ 20 Gauge stud or track
362S125-33	362T125-33	3-⅝″ 20 Gauge stud or track
400S125-33	400T125-33	4″ 20 Gauge stud or track
600S125-33	600T125-33	6″ 20 Gauge stud or track

Drywall Track

Nonstructural Metal Track and Steel Track for Superior Interior Framing

Drywall metal track (also known as steel track, metal framing track, or cold formed metal track) is available in material thicknesses from 30 mils down to 15 mils, making it an essential component for interior framing systems. These non-load bearing metal tracks serve as the horizontal top and bottom channels in partition walls, drop ceilings, soffits, and other interior assemblies, providing secure anchoring for metal studs in both residential and commercial construction projects—from basement remodeling to high-rise developments.

Compared to traditional wood framing, steel track offers exceptional dimensional stability, ensuring straight, consistent, and uniform wall bases and caps that simplify alignment, speed up installation, and significantly reduce overall construction time. Many cold formed metal track products include features like curved webs or stiffening ribs for easy stud insertion and secure fit, while their inherent fire resistance ensures compliance with strict building codes and enhances occupant safety in fire-rated assemblies.In addition to structural advantages, metal track framing contributes to outstanding sound reduction and acoustic performance.

When used in complete steel framing systems with metal studs, proper insulation, and advanced drywall techniques, drywall metal track helps minimize sound transmission—especially in the mid-frequency range of human speech—creating quieter, more comfortable environments. This makes it a top choice for achieving high Sound Transmission Class (STC) ratings in multi-family housing, offices, hotels, schools, and other commercial buildings where noise control is essential.

Track Name	Stud Name	Common Name / Size & Gauge Description
162T125-18	162S125-18	1-5/8″ 25 Gauge stud or track
250T125-18	250S125-18	2-1/2″ 25 Gauge stud or track
362T125-18	362S125-18	3-5/8″ 25 Gauge stud or track
400T125-18	400S125-18	4″ 25 Gauge stud or track
600T125-18	600S125-18	6″ 25 Gauge stud or track
162T125-23	162S125-23	1-⅝″ 20 Gauge EQ stud or track
250T125-23	250S125-23	2-½″ 20 Gauge EQ stud or track
362T125-23	362S125-23	3-⅝″ 20 Gauge EQ stud or track
400T125-23	400S125-23	4″ 20 Gauge EQ stud or track
600T125-23	600S125-23	6″ 20 Gauge EQ stud or track
162T125-30	162S125-30	1-5/8″ 20 Gauge stud or track
250T125-30	250S125-30	2-1/2″ 20 Gauge stud or track
362T125-30	362S125-30	3-5/8″ 20 Gauge stud or track
400T125-30	400S125-30	4″ 20 Gauge stud or track
600T125-30	600S125-30	6″ 20 Gauge stud or track
162T125-33	162S125-33	1-⅝″ 20 Gauge stud or track
250T125-33	250S125-33	2-½″ 20 Gauge stud or track
362T125-33	362S125-33	3-⅝″ 20 Gauge stud or track
400T125-33	400S125-33	4″ 20 Gauge stud or track
600T125-33	600S125-33	6″ 20 Gauge stud or track

Structural Studs

Structural Metal Studs and Steel Studs for Load-Bearing and Exterior Framing

Structural metal studs (also known as structural steel studs or cold formed structural studs), ranging from structural 20 gauge (33 mils) to 12 gauge (97 mils), are engineered for demanding light-duty structural applications. A primary use is in exterior curtain wall systems, where these load-bearing metal studs provide robust support for cladding materials like brick, stucco, glass, or metal panels. They effectively resist wind loads and maintain the building envelope’s integrity without carrying the primary vertical loads of the structure—making them ideal for commercial and industrial projects requiring reliable mounting for exterior finishes.

These structural studs are also essential for constructing tall interior partitions (25 ft+ and beyond), delivering stability and minimal deflection in large open spaces such as retail stores, warehouses, factories, and multi-story buildings when supporting heavy finishing materials like drywall.

Structural 20 gauge studs and corresponding track offer versatile solutions for a broad range of framing needs, extending far beyond standard non-structural drywall partitions. Unlike lighter EQ 20 gauge studs (typically 18–30 mils, used in non-load-bearing interior applications), true structural 20 gauge members (33 mils minimum thickness) are designed for both load-bearing and non-load-bearing scenarios. In load-bearing applications, engineers must carefully evaluate all applicable loads—including axial compression, lateral forces, wind, and seismic—to ensure safe performance.

Government, public works, and military projects (such as those following US Army Corps of Engineers standards) often require true 20 gauge structural studs at 33 mils thickness for compliance and durability.

Construction professionals should always follow approved engineering guidelines, load tables, and span charts to determine allowable heights, spacing, and capacities. Proper installation techniques—including adequate bracing (e.g., strap or bridging), secure connections with self-drilling screws or welding—and attention to deflection limits are critical to prevent buckling, ensure long-term structural integrity, and meet building code requirements.

From curtain wall framing and axial load-bearing walls to tall partition systems and beyond, structural metal studs deliver superior strength, dimensional stability, and cost-effective performance for modern commercial, industrial, and institutional construction. At The Formetal Company, we manufacture high-quality structural steel studs and track in custom lengths—contact us for project-specific options and technical support.

Stud Name	Track Name	Common Name
250S162-33	250T125-33	2-1/2″ 20 Gauge stud or track
362S162-33	362T125-33	3-5/8″ 20 Gauge stud or track
400S162-33	400T125-33	4″ 20 Gauge stud or track
600S162-33	600T125-33	6″ 20 Gauge stud or track
800S162-33	800T125-33	8″ 20 Gauge stud or track
250S162-43	250T125-43	2-1/2″ 18 Gauge stud or track
362S162-43	362T125-43	3-5/8″ 18 Gauge stud or track
400S162-43	400T125-43	4″ 18 Gauge stud or track
600S162-43	600T125-43	6″ 18 Gauge stud or track
800S162-43	800T125-43	8″ 18 Gauge stud or track
1000S162-43	1000T125-43	10″ 18 Gauge stud or track
250S162-54	250T125-54	2-1/2″ 16 Gauge stud or track
362S162-54	362T125-54	3-5/8″ 16 Gauge stud or track
400S162-54	400T125-54	4″ 16 Gauge stud or track
600S162-54	600T125-54	6″ 16 Gauge stud or track
800S162-54	800T125-54	8″ 16 Gauge stud or track
1000S162-54	1000T125-54	10″ 16 Gauge stud or track
1200S162-54	1200T125-54	12″ 16 Gauge stud or track
1400S162-54	1400T125-54	14″ 16 Gauge stud or track
250S162-68	250T125-68	2-1/2″ 14 Gauge stud or track
362S162-68	362T125-68	3-5/8″ 14 Gauge stud or track
400S162-68	400T125-68	4″ 14 Gauge stud or track
600S162-68	600T125-68	6″ 14 Gauge stud or track
800S162-68	800T125-68	8″ 14 Gauge stud or track
1000S162-68	1000T125-68	10″ 14 Gauge stud or track
1200S162-68	1200T125-68	12″ 14 Gauge stud or track
1400S162-68	1400T125-68	14″ 14 Gauge stud or track
1600S162-68	1600T125-68	16″ 14 Gauge stud or track
250S162-97	250T125-97	2-1/2″ 12 Gauge stud or track
362S162-97	362T125-97	3-5/8″ 12 Gauge stud or track
400S162-97	400T125-97	4″ 12 Gauge stud or track
600S162-97	600T125-97	6″ 12 Gauge stud or track
800S162-97	800T125-97	8″ 12 Gauge stud or track
1000S162-97	1000T125-97	10″ 12 Gauge stud or track
1200S162-97	1200T125-97	12″ 12 Gauge stud or track
1400S162-97	1400T125-97	14″ 12 Gauge stud or track
1600S162-97	1600T125-97	16″ 12 Gauge stud or track
362S162-118	362T125-118	3-5/8″ 10 Gauge stud or track
400S162-118	400T125-118	4″ 10 Gauge stud or track
600S162-118	600T125-118	6″ 10 Gauge stud or track
800S162-118	800T125-118	8″ 10 Gauge stud or track
1000S162-118	1000T125-118	10″ 10 Gauge stud or track
1200S162-118	1200T125-118	12″ 10 Gauge stud or track
1400S162-118	1400T125-118	14″ 10 Gauge stud or track
1600S162-118	1600T125-118	16″ 10 Gauge stud or track

Structural Track

Structural Metal Track and Steel Track for Load-Bearing and Exterior Framing

Structural metal track (also known as structural steel track or cold formed structural track), ranging from structural 20 gauge (33 mils) to 12 gauge (97 mils), is engineered for demanding light-duty structural applications. A primary use is in exterior curtain wall systems, where these load-bearing metal tracks serve as the top and bottom runners (channels) to securely anchor structural studs, providing robust support for cladding materials like brick, stucco, glass, or metal panels. They effectively resist wind loads, accommodate building movement and deflection, and maintain the building envelope’s integrity without carrying the primary vertical loads of the structure—making them ideal for commercial and industrial projects requiring reliable, code-compliant mounting for exterior finishes.

These structural tracks are also essential for constructing tall interior partitions (25 ft+ and beyond), delivering stability and minimal deflection in large open spaces such as retail stores, warehouses, factories, and multi-story buildings when supporting heavy finishing materials like drywall. Specialized variants, such as deflection tracks or slotted tracks, allow for vertical movement and drift in curtain walls and tall assemblies.

Structural 20 gauge track and corresponding studs offer versatile solutions for a broad range of framing needs, extending far beyond standard non-structural drywall partitions. Unlike lighter EQ 20 gauge products (typically 18–30 mils, used in non-load-bearing interior applications), true structural 20 gauge members (33 mils minimum thickness) are designed for both load-bearing and non-load-bearing scenarios. In load-bearing applications, engineers must carefully evaluate all applicable loads—including axial compression, lateral forces, wind, and seismic—to ensure safe performance.

Government, public works, and military projects (such as those following US Army Corps of Engineers standards) often require true 20 gauge structural track at 33 mils thickness for compliance and durability.

Construction professionals should always follow approved engineering guidelines, load tables, and span charts to determine allowable heights, spacing, bracing requirements, and capacities. Proper installation techniques—including adequate bracing (e.g., strap or bridging), secure connections with self-drilling screws or welding—and attention to deflection limits are critical to prevent buckling, ensure long-term structural integrity, and meet building code requirements.

From curtain wall framing and axial load-bearing walls to tall partition systems, deflection accommodations, and beyond, structural metal track delivers superior strength, dimensional stability, and cost-effective performance for modern commercial, industrial, and institutional construction. At The Formetal Company, we manufacture high-quality structural steel track and studs in custom lengths—contact us for project-specific options, technical support, and reliable supply.

Track Name	Stud Name	Common Name
250T125-33	250S162-33	2-1/2″ 20 Gauge stud or track
362T125-33	362S162-33	3-5/8″ 20 Gauge stud or track
400T125-33	400S162-33	4″ 20 Gauge stud or track
600T125-33	600S162-33	6″ 20 Gauge stud or track
800T125-33	800S162-33	8″ 20 Gauge stud or track
250T125-43	250S162-43	2-1/2″ 18 Gauge stud or track
362T125-43	362S162-43	3-5/8″ 18 Gauge stud or track
400T125-43	400S162-43	4″ 18 Gauge stud or track
600T125-43	600S162-43	6″ 18 Gauge stud or track
800T125-43	800S162-43	8″ 18 Gauge stud or track
1000T125-43	1000S162-43	10″ 18 Gauge stud or track
250T125-54	250S162-54	2-1/2″ 16 Gauge stud or track
362T125-54	362S162-54	3-5/8″ 16 Gauge stud or track
400T125-54	400S162-54	4″ 16 Gauge stud or track
600T125-54	600S162-54	6″ 16 Gauge stud or track
800T125-54	800S162-54	8″ 16 Gauge stud or track
1000T125-54	1000S162-54	10″ 16 Gauge stud or track
1200T125-54	1200S162-54	12″ 16 Gauge stud or track
1400T125-54	1400S162-54	14″ 16 Gauge stud or track
250T125-68	250S162-68	2-1/2″ 14 Gauge stud or track
362T125-68	362S162-68	3-5/8″ 14 Gauge stud or track
400T125-68	400S162-68	4″ 14 Gauge stud or track
600T125-68	600S162-68	6″ 14 Gauge stud or track
800T125-68	800S162-68	8″ 14 Gauge stud or track
1000T125-68	1000S162-68	10″ 14 Gauge stud or track
1200T125-68	1200S162-68	12″ 14 Gauge stud or track
1400T125-68	1400S162-68	14″ 14 Gauge stud or track
1600T125-68	1600S162-68	16″ 14 Gauge stud or track
250T125-97	250S162-97	2-1/2″ 12 Gauge stud or track
362T125-97	362S162-97	3-5/8″ 12 Gauge stud or track
400T125-97	400S162-97	4″ 12 Gauge stud or track
600T125-97	600S162-97	6″ 12 Gauge stud or track
800T125-97	800S162-97	8″ 12 Gauge stud or track
1000T125-97	1000S162-97	10″ 12 Gauge stud or track
1200T125-97	1200S162-97	12″ 12 Gauge stud or track
1400T125-97	1400S162-97	14″ 12 Gauge stud or track
1600T125-97	1600S162-97	16″ 12 Gauge stud or track
362T125-118	362S162-118	3-5/8″ 10 Gauge stud or track
400T125-118	400S162-118	4″ 10 Gauge stud or track
600T125-118	600S162-118	6″ 10 Gauge stud or track
800T125-118	800S162-118	8″ 10 Gauge stud or track
1000T125-118	1000S162-118	10″ 10 Gauge stud or track
1200T125-118	1200S162-118	12″ 10 Gauge stud or track
1400T125-118	1400S162-118	14″ 10 Gauge stud or track
1600T125-118	1600S162-118	16″ 10 Gauge stud or track

Deep Structural C Studs

Deep Structural C Studs for Load-Bearing Walls – Heavy-Gauge Cold-Formed Steel Framing Solutions for Structural Applications

Deep structural C studs, also known as structural C studs, deep flange C studs, heavy-gauge C studs, cold-formed steel C studs, load-bearing C studs, or structural metal studs, are robust cold-formed steel framing components designed with deeper flanges (typically 2 inches or more) and thicker gauges, to provide superior strength, stiffness, and load-bearing capacity in demanding structural framing systems.

Manufactured from high-strength galvanized steel (per ASTM A653/A1003 standards with G60 or G90 coatings for corrosion resistance), these C-shaped studs are essential for constructing load-bearing walls, exterior walls, curtain walls, interior partitions, floor joists, roof rafters, trusses, and header assemblies in commercial construction, industrial buildings, multi-story structures, high-rise projects, schools, hospitals, and residential load-bearing applications.

In cold-formed steel framing and light-gauge steel construction, deep structural C studs excel at supporting axial loads, resisting wind and seismic forces, and integrating with bridging, deflection tracks, and clip angles for enhanced stability and code compliance (IBC, AISI, and ASTM). Their deeper flanges offer increased resistance to buckling and torsion, making them ideal for taller walls, wider spans, and heavier loads compared to standard non-structural studs. Whether used in fire-rated assemblies, wind-loaded exteriors, seismic zones, or as vertical members in wall framing systems with punched webs for utilities like electrical wiring, plumbing, and HVAC ducts, deep structural C studs provide a durable, versatile, noncombustible, and cost-effective metal framing solution for reliable, engineer-approved performance in modern building projects.

Gauge	Width	Stud Name (2" Flange)	Common Name (2" Flange)	Stud Name (2-1/2" Flange)	Common Name (2-1/2" Flange)	Stud Name (3" Flange)	Common Name (3" Flange)	Stud Name (3-1/2" Flange)	Common Name (3-1/2" Flange)
20 Gauge (033)	2-1/2"	250S200-33	2-1/2" 20 Gauge Stud 2" Flange	250S250-33	2-1/2" 20 Gauge Stud 2-1/2" Flange
	3-5/8"	362S200-33	3-5/8" 20 Gauge Stud 2" Flange	362S250-33	3-5/8" 20 Gauge Stud 2-1/2" Flange	362S300-33	3-5/8" 20 Gauge Stud 3" Flange
	4"	400S200-33	4" 20 Gauge Stud 2" Flange	400S250-33	4" 20 Gauge Stud 2-1/2" Flange	400S300-33	4" 20 Gauge Stud 3" Flange
	6"	600S200-33	6" 20 Gauge Stud 2" Flange	600S250-33	6" 20 Gauge Stud 2-1/2" Flange	600S300-33	6" 20 Gauge Stud 3" Flange	600S350-33	6" 20 Gauge Stud 3-1/2" Flange
	8"	800S200-33	8" 20 Gauge Stud 2" Flange	800S250-33	8" 20 Gauge Stud 2-1/2" Flange	800S300-33	8" 20 Gauge Stud 3" Flange	800S350-33	8" 20 Gauge Stud 3-1/2" Flange
18 Gauge (043)	2"	250S200-43	2" 18 Gauge Stud 2" Flange	200S250-43	2" 18 Gauge Stud 2-1/2" Flange
	3-5/8"	362S200-43	3-5/8" 18 Gauge Stud 2" Flange	362S250-43	3-5/8" 18 Gauge Stud 2-1/2" Flange	362S300-43	3-5/8" 18 Gauge Stud 3" Flange
	4"	400S200-43	4" 18 Gauge Stud 2" Flange	400S250-43	4" 18 Gauge Stud 2-1/2" Flange	400S300-43	4" 18 Gauge Stud 3" Flange
	6"	600S200-43	6" 18 Gauge Stud 2" Flange	600S250-43	6" 18 Gauge Stud 2-1/2" Flange	600S300-43	6" 18 Gauge Stud 3" Flange	600S350-43	6" 18 Gauge Stud 3-1/2" Flange
	8"	800S200-43	8" 18 Gauge Stud 2" Flange	800S250-43	8" 18 Gauge Stud 2-1/2" Flange	800S300-43	8" 18 Gauge Stud 3" Flange	800S350-43	8" 18 Gauge Stud 3-1/2" Flange
	10"	1000S200-43	10" 18 Gauge Stud 2" Flange	1000S250-43	10" 18 Gauge Stud 2-1/2" Flange	1000S300-43	10" 18 Gauge Stud 3" Flange	1000S350-43	10" 18 Gauge Stud 3-1/2" Flange
16 Gauge (054)	2"	250S200-54	2" 16 Gauge Stud 2" Flange	200S250-54	2" 16 Gauge Stud 2-1/2" Flange
	3-5/8"	362S200-54	3-5/8" 16 Gauge Stud 2" Flange	362S250-54	3-5/8" 16 Gauge Stud 2-1/2" Flange	362S300-54	3-5/8" 16 Gauge Stud 3" Flange
	4"	400S200-54	4" 16 Gauge Stud 2" Flange	400S250-54	4" 16 Gauge Stud 2-1/2" Flange	400S300-54	4" 16 Gauge Stud 3" Flange
	6"	600S200-54	6" 16 Gauge Stud 2" Flange	600S250-54	6" 16 Gauge Stud 2-1/2" Flange	600S300-54	6" 16 Gauge Stud 3" Flange	600S350-54	6" 16 Gauge Stud 3-1/2" Flange
	8"	800S200-54	8" 16 Gauge Stud 2" Flange	800S250-54	8" 16 Gauge Stud 2-1/2" Flange	800S300-54	8" 16 Gauge Stud 3" Flange	800S350-54	8" 16 Gauge Stud 3-1/2" Flange
	10"	1000S200-54	10" 16 Gauge Stud 2" Flange	1000S250-54	10" 16 Gauge Stud 2-1/2" Flange	1000S300-54	10" 16 Gauge Stud 3" Flange	1000S350-54	10" 16 Gauge Stud 3-1/2" Flange
	12"	1200S200-54	12" 16 Gauge Stud 2" Flange	1200S250-54	12" 16 Gauge Stud 2-1/2" Flange	1200S300-54	12" 16 Gauge Stud 3" Flange	1200S350-54	12" 16 Gauge Stud 3-1/2" Flange
	14"	1400S200-54	14" 16 Gauge Stud 2" Flange	1400S250-54	14" 16 Gauge Stud 2-1/2" Flange	1400S300-54	14" 16 Gauge Stud 3" Flange	1400S350-54	14" 16 Gauge Stud 3-1/2" Flange
14 Gauge (068)	2"	250S200-68	2" 14 Gauge Stud 2" Flange	200S250-68	2" 14 Gauge Stud 2-1/2" Flange
	3-5/8"	362S200-68	3-5/8" 14 Gauge Stud 2" Flange	362S250-68	3-5/8" 14 Gauge Stud 2-1/2" Flange	362S300-68	3-5/8" 14 Gauge Stud 3" Flange
	4"	400S200-68	4" 14 Gauge Stud 2" Flange	400S250-68	4" 14 Gauge Stud 2-1/2" Flange	400S300-68	4" 14 Gauge Stud 3" Flange
	6"	600S200-68	6" 14 Gauge Stud 2" Flange	600S250-68	6" 14 Gauge Stud 2-1/2" Flange	600S300-68	6" 14 Gauge Stud 3" Flange	600S350-68	6" 14 Gauge Stud 3-1/2" Flange
	8"	800S200-68	8" 14 Gauge Stud 2" Flange	800S250-68	8" 14 Gauge Stud 2-1/2" Flange	800S300-68	8" 14 Gauge Stud 3" Flange	800S350-68	8" 14 Gauge Stud 3-1/2" Flange
	10"	1000S200-68	10" 14 Gauge Stud 2" Flange	1000S250-68	10" 14 Gauge Stud 2-1/2" Flange	1000S300-68	10" 14 Gauge Stud 3" Flange	1000S350-68	10" 14 Gauge Stud 3-1/2" Flange
	12"	1200S200-68	12" 14 Gauge Stud 2" Flange	1200S250-68	12" 14 Gauge Stud 2-1/2" Flange	1200S300-68	12" 14 Gauge Stud 3" Flange	1200S350-68	12" 14 Gauge Stud 3-1/2" Flange
	14"	1400S200-68	14" 14 Gauge Stud 2" Flange	1400S250-68	14" 14 Gauge Stud 2-1/2" Flange	1400S300-68	14" 14 Gauge Stud 3" Flange	1400S350-68	14" 14 Gauge Stud 3-1/2" Flange
	16"	1600S200-68	16" 14 Gauge Stud 2" Flange	1600S250-68	16" 14 Gauge Stud 2-1/2" Flange	1600S300-68	16" 14 Gauge Stud 3" Flange	1600S350-68	16" 14 Gauge Stud 3-1/2" Flange
12 Gauge (097)	2"	250S200-97	2" 12 Gauge Stud 2" Flange	200S250-97	2" 12 Gauge Stud 2-1/2" Flange
	3-5/8"	362S200-97	3-5/8" 12 Gauge Stud 2" Flange	362S250-97	3-5/8" 12 Gauge Stud 2-1/2" Flange	362S300-97	3-5/8" 12 Gauge Stud 3" Flange
	4"	400S200-97	4" 12 Gauge Stud 2" Flange	400S250-97	4" 12 Gauge Stud 2-1/2" Flange	400S300-97	4" 12 Gauge Stud 3" Flange
	6"	600S200-97	6" 12 Gauge Stud 2" Flange	600S250-97	6" 12 Gauge Stud 2-1/2" Flange	600S300-97	6" 12 Gauge Stud 3" Flange	600S350-97	6" 12 Gauge Stud 3-1/2" Flange
	8"	800S200-97	8" 12 Gauge Stud 2" Flange	800S250-97	8" 12 Gauge Stud 2-1/2" Flange	800S300-97	8" 12 Gauge Stud 3" Flange	800S350-97	8" 12 Gauge Stud 3-1/2" Flange
	10"	1000S200-97	10" 12 Gauge Stud 2" Flange	1000S250-97	10" 12 Gauge Stud 2-1/2" Flange	1000S300-97	10" 12 Gauge Stud 3" Flange	1000S350-97	10" 12 Gauge Stud 3-1/2" Flange
	12"	1200S200-97	12" 12 Gauge Stud 2" Flange	1200S250-97	12" 12 Gauge Stud 2-1/2" Flange	1200S300-97	12" 12 Gauge Stud 3" Flange	1200S350-97	12" 12 Gauge Stud 3-1/2" Flange
	14"	1400S200-97	14" 12 Gauge Stud 2" Flange	1400S250-97	14" 12 Gauge Stud 2-1/2" Flange	1400S300-97	14" 12 Gauge Stud 3" Flange	1400S350-97	14" 12 Gauge Stud 3-1/2" Flange
	16"	1600S200-97	16" 12 Gauge Stud 2" Flange	1600S250-97	16" 12 Gauge Stud 2-1/2" Flange	1600S300-97	16" 12 Gauge Stud 3" Flange	1600S350-97	16" 12 Gauge Stud 3-1/2" Flange
10 Gauge (118)	3-5/8"	362S200-118	3-5/8" 10 Gauge Stud 2" Flange	362S250-118	3-5/8" 10 Gauge Stud 2-1/2" Flange	362S300-118	3-5/8" 10 Gauge Stud 3" Flange
	4"	400S200-118	4" 10 Gauge Stud 2" Flange	400S250-118	4" 10 Gauge Stud 2-1/2" Flange	400S300-118	4" 10 Gauge Stud 3" Flange
	6"	600S200-118	6" 10 Gauge Stud 2" Flange	600S250-118	6" 10 Gauge Stud 2-1/2" Flange	600S300-118	6" 10 Gauge Stud 3" Flange	600S350-118	6" 10 Gauge Stud 3-1/2" Flange
	8"	800S200-118	8" 10 Gauge Stud 2" Flange	800S250-118	8" 10 Gauge Stud 2-1/2" Flange	800S300-118	8" 10 Gauge Stud 3" Flange	800S350-118	8" 10 Gauge Stud 3-1/2" Flange
	10"	1000S200-118	10" 10 Gauge Stud 2" Flange	1000S250-118	10" 10 Gauge Stud 2-1/2" Flange	1000S300-118	10" 10 Gauge Stud 3" Flange	1000S350-118	10" 10 Gauge Stud 3-1/2" Flange
	12"	1200S200-118	12" 10 Gauge Stud 2" Flange	1200S250-118	12" 10 Gauge Stud 2-1/2" Flange	1200S300-118	12" 10 Gauge Stud 3" Flange	1200S350-118	12" 10 Gauge Stud 3-1/2" Flange
	14"	1400S200-118	14" 10 Gauge Stud 2" Flange	1400S250-118	14" 10 Gauge Stud 2-1/2" Flange	1400S300-118	14" 10 Gauge Stud 3" Flange	1400S350-118	14" 10 Gauge Stud 3-1/2" Flange
	16"	1600S200-118	16" 10 Gauge Stud 2" Flange	1600S250-118	16" 10 Gauge Stud 2-1/2" Flange	1600S300-118	16" 10 Gauge Stud 3" Flange	1600S350-118	16" 10 Gauge Stud 3-1/2" Flange

Deep Leg Track

Deep Leg Structural Track / Deep Leg Deflection Track for Cold-Formed Steel Framing – Head-of-Wall Deflection & Concrete Pour Stop Solutions

Deep leg structural track, also known as deep leg deflection track, deep leg track, structural deep leg track, slip track, deflection track system, or single deep leg track, is a heavy-duty cold-formed steel framing component featuring extended flanges (legs) of 2 inches, 2-1/2 inches, 3 inches, or longer, designed for critical applications in non-load-bearing and curtain wall systems. In cold-formed steel framing and light-gauge steel construction, this deep leg track (typically manufactured in gauges like 16, 14, 12, or heavier, with G60 or G90 galvanized coating per ASTM A653/A1003) serves as an essential head-of-wall deflection track to accommodate vertical building movement due to live loads, floor deflection, thermal expansion, wind forces, or seismic activity, preventing axial load transfer to wall studs and avoiding damage to drywall, gypsum board, finishes, or the overall wall assembly.

Primary uses include creating concrete pour stops or edge forms for concrete slabs, poured concrete floors, or composite decking, where the extended flange acts as a reliable barrier to contain concrete during pours while providing structural support. In deflection scenarios—especially for exterior curtain walls, interior partitions, tall walls, spandrel conditions, or non-structural walls—the deep leg structural track provides generous clearance (gaps of 1/2″ to 1″ or more) for stud movement, ensuring the top of the stud “floats” within the track legs without rigid attachment, thus isolating the wall from primary structure deflection and maintaining long-term integrity.

Additionally, the deeper legs help absorb construction tolerances, minor height variations in wall assemblies, and in-plane movement requirements in seismic zones (per IBC and AISI standards), while supporting code-compliant performance in fire-rated assemblies, wind-loaded exteriors, and high-rise applications. Whether used as single deep leg deflection track, structural deflection track, or in combination with bridging like cold-rolled channels and clip angles, deep leg structural track offers a durable, versatile, and engineer-approved cold-formed steel framing solution for reliable head-of-wall connections, concrete edge forming, and deflection accommodation in modern commercial, industrial, and multi-story building projects.

Gauge	Width	Track Name (2" Leg)	Common Name (2" Leg)	Track Name (2.5" Leg)	Common Name (2.5" Leg)	Track Name (3" Leg)	Common Name (3" Leg)
20 Gauge (033)	2-1/2"	250T200-33	2-1/2" 20 Gauge Deep Leg Track 2" Legs	250T250-33	2-1/2" 20 Gauge Deep Leg Track 2-1/2" Legs	250T300-33	2-1/2" 20 Gauge Deep Leg Track 3" Legs
	3-5/8"	362T200-33	3-5/8" 20 Gauge Deep Leg Track 2" Legs	362T250-33	3-5/8" 20 Gauge Deep Leg Track 2-1/2" Legs	362T300-33	3-5/8" 20 Gauge Deep Leg Track 3" Legs
	4"	400T200-33	4" 20 Gauge Deep Leg Track 2" Legs	400T250-33	4" 20 Gauge Deep Leg Track 2-1/2" Legs	400T300-33	4" 20 Gauge Deep Leg Track 3" Legs
	6"	600T200-33	6" 20 Gauge Deep Leg Track 2" Legs	600T250-33	6" 20 Gauge Deep Leg Track 2-1/2" Legs	600T300-33	6" 20 Gauge Deep Leg Track 3" Legs
	8"	800T200-33	8" 20 Gauge Deep Leg Track 2" Legs	800T250-33	8" 20 Gauge Deep Leg Track 2-1/2" Legs	800T300-33	8" 20 Gauge Deep Leg Track 3" Legs
	10"	1000T200-33	10" 20 Gauge Deep Leg Track 2" Legs	1000T250-33	10" 20 Gauge Deep Leg Track 2-1/2" Legs	1000T300-33	10" 20 Gauge Deep Leg Track 3" Legs
	12"	1200T200-33	12" 20 Gauge Deep Leg Track 2" Legs	1200T250-33	12" 20 Gauge Deep Leg Track 2-1/2" Legs	1200T300-33	12" 20 Gauge Deep Leg Track 3" Legs
	14"	1400T200-33	14" 20 Gauge Deep Leg Track 2" Legs	1400T250-33	14" 20 Gauge Deep Leg Track 2-1/2" Legs	1400T300-33	14" 20 Gauge Deep Leg Track 3" Legs
	16"	1600T200-33	16" 20 Gauge Deep Leg Track 2" Legs	1600T250-33	16" 20 Gauge Deep Leg Track 2-1/2" Legs	1600T300-33	16" 20 Gauge Deep Leg Track 3" Legs
18 Gauge (043)	2-1/2"	250T200-43	2-1/2" 18 Gauge Deep Leg Track 2" Legs	250T250-43	2-1/2" 18 Gauge Deep Leg Track 2-1/2" Legs	250T300-43	2-1/2" 18 Gauge Deep Leg Track 3" Legs
	3-5/8"	362T200-43	3-5/8" 18 Gauge Deep Leg Track 2" Legs	362T250-43	3-5/8" 18 Gauge Deep Leg Track 2-1/2" Legs	362T300-43	3-5/8" 18 Gauge Deep Leg Track 3" Legs
	4"	400T200-43	4" 18 Gauge Deep Leg Track 2" Legs	400T250-43	4" 18 Gauge Deep Leg Track 2-1/2" Legs	400T300-43	4" 18 Gauge Deep Leg Track 3" Legs
	6"	600T200-43	6" 18 Gauge Deep Leg Track 2" Legs	600T250-43	6" 18 Gauge Deep Leg Track 2-1/2" Legs	600T300-43	6" 18 Gauge Deep Leg Track 3" Legs
	8"	800T200-43	8" 18 Gauge Deep Leg Track 2" Legs	800T250-43	8" 18 Gauge Deep Leg Track 2-1/2" Legs	800T300-43	8" 18 Gauge Deep Leg Track 3" Legs
	10"	1000T200-43	10" 18 Gauge Deep Leg Track 2" Legs	1000T250-43	10" 18 Gauge Deep Leg Track 2-1/2" Legs	1000T300-43	10" 18 Gauge Deep Leg Track 3" Legs
	12"	1200T200-43	12" 18 Gauge Deep Leg Track 2" Legs	1200T250-43	12" 18 Gauge Deep Leg Track 2-1/2" Legs	1200T300-43	12" 18 Gauge Deep Leg Track 3" Legs
	14"	1400T200-43	14" 18 Gauge Deep Leg Track 2" Legs	1400T250-43	14" 18 Gauge Deep Leg Track 2-1/2" Legs	1400T300-43	14" 18 Gauge Deep Leg Track 3" Legs
	16"	1600T200-43	16" 18 Gauge Deep Leg Track 2" Legs	1600T250-43	16" 18 Gauge Deep Leg Track 2-1/2" Legs	1600T300-43	16" 18 Gauge Deep Leg Track 3" Legs
16 Gauge (054)	2-1/2"	250T200-54	2-1/2" 16 Gauge Deep Leg Track 2" Legs	250T250-54	2-1/2" 16 Gauge Deep Leg Track 2-1/2" Legs	250T300-54	2-1/2" 16 Gauge Deep Leg Track 3" Legs
	3-5/8"	362T200-54	3-5/8" 16 Gauge Deep Leg Track 2" Legs	362T250-54	3-5/8" 16 Gauge Deep Leg Track 2-1/2" Legs	362T300-54	3-5/8" 16 Gauge Deep Leg Track 3" Legs
	4"	400T200-54	4" 16 Gauge Deep Leg Track 2" Legs	400T250-54	4" 16 Gauge Deep Leg Track 2-1/2" Legs	400T300-54	4" 16 Gauge Deep Leg Track 3" Legs
	6"	600T200-54	6" 16 Gauge Deep Leg Track 2" Legs	600T250-54	6" 16 Gauge Deep Leg Track 2-1/2" Legs	600T300-54	6" 16 Gauge Deep Leg Track 3" Legs
	8"	800T200-54	8" 16 Gauge Deep Leg Track 2" Legs	800T250-54	8" 16 Gauge Deep Leg Track 2-1/2" Legs	800T300-54	8" 16 Gauge Deep Leg Track 3" Legs
	10"	1000T200-54	10" 16 Gauge Deep Leg Track 2" Legs	1000T250-54	10" 16 Gauge Deep Leg Track 2-1/2" Legs	1000T300-54	10" 16 Gauge Deep Leg Track 3" Legs
	12"	1200T200-54	12" 16 Gauge Deep Leg Track 2" Legs	1200T250-54	12" 16 Gauge Deep Leg Track 2-1/2" Legs	1200T300-54	12" 16 Gauge Deep Leg Track 3" Legs
	14"	1400T200-54	14" 16 Gauge Deep Leg Track 2" Legs	1400T250-54	14" 16 Gauge Deep Leg Track 2-1/2" Legs	1400T300-54	14" 16 Gauge Deep Leg Track 3" Legs
	16"	1600T200-54	16" 16 Gauge Deep Leg Track 2" Legs	1600T250-54	16" 16 Gauge Deep Leg Track 2-1/2" Legs	1600T300-54	16" 16 Gauge Deep Leg Track 3" Legs
14 Gauge (068)	2-1/2"	250T200-68	2-1/2" 14 Gauge Deep Leg Track 2" Legs	250T250-68	2-1/2" 14 Gauge Deep Leg Track 2-1/2" Legs	250T300-68	2-1/2" 14 Gauge Deep Leg Track 3" Legs
	3-5/8"	362T200-68	3-5/8" 14 Gauge Deep Leg Track 2" Legs	362T250-68	3-5/8" 14 Gauge Deep Leg Track 2-1/2" Legs	362T300-68	3-5/8" 14 Gauge Deep Leg Track 3" Legs
	4"	400T200-68	4" 14 Gauge Deep Leg Track 2" Legs	400T250-68	4" 14 Gauge Deep Leg Track 2-1/2" Legs	400T300-68	4" 14 Gauge Deep Leg Track 3" Legs
	6"	600T200-68	6" 14 Gauge Deep Leg Track 2" Legs	600T250-68	6" 14 Gauge Deep Leg Track 2-1/2" Legs	600T300-68	6" 14 Gauge Deep Leg Track 3" Legs
	8"	800T200-68	8" 14 Gauge Deep Leg Track 2" Legs	800T250-68	8" 14 Gauge Deep Leg Track 2-1/2" Legs	800T300-68	8" 14 Gauge Deep Leg Track 3" Legs
	10"	1000T200-68	10" 14 Gauge Deep Leg Track 2" Legs	1000T250-68	10" 14 Gauge Deep Leg Track 2-1/2" Legs	1000T300-68	10" 14 Gauge Deep Leg Track 3" Legs
	12"	1200T200-68	12" 14 Gauge Deep Leg Track 2" Legs	1200T250-68	12" 14 Gauge Deep Leg Track 2-1/2" Legs	1200T300-68	12" 14 Gauge Deep Leg Track 3" Legs
	14"	1400T200-68	14" 14 Gauge Deep Leg Track 2" Legs	1400T250-68	14" 14 Gauge Deep Leg Track 2-1/2" Legs	1400T300-68	14" 14 Gauge Deep Leg Track 3" Legs
	16"	1600T200-68	16" 14 Gauge Deep Leg Track 2" Legs	1600T250-68	16" 14 Gauge Deep Leg Track 2-1/2" Legs	1600T300-68	16" 14 Gauge Deep Leg Track 3" Legs
12 Gauge (097)	2-1/2"	250T200-97	2-1/2" 12 Gauge Deep Leg Track 2" Legs	250T250-97	2-1/2" 12 Gauge Deep Leg Track 2-1/2" Legs	250T300-97	2-1/2" 12 Gauge Deep Leg Track 3" Legs
	3-5/8"	362T200-97	3-5/8" 12 Gauge Deep Leg Track 2" Legs	362T250-97	3-5/8" 12 Gauge Deep Leg Track 2-1/2" Legs	362T300-97	3-5/8" 12 Gauge Deep Leg Track 3" Legs
	4"	400T200-97	4" 12 Gauge Deep Leg Track 2" Legs	400T250-97	4" 12 Gauge Deep Leg Track 2-1/2" Legs	400T300-97	4" 12 Gauge Deep Leg Track 3" Legs
	6"	600T200-97	6" 12 Gauge Deep Leg Track 2" Legs	600T250-97	6" 12 Gauge Deep Leg Track 2-1/2" Legs	600T300-97	6" 12 Gauge Deep Leg Track 3" Legs
	8"	800T200-97	8" 12 Gauge Deep Leg Track 2" Legs	800T250-97	8" 12 Gauge Deep Leg Track 2-1/2" Legs	800T300-97	8" 12 Gauge Deep Leg Track 3" Legs
	10"	1000T200-97	10" 12 Gauge Deep Leg Track 2" Legs	1000T250-97	10" 12 Gauge Deep Leg Track 2-1/2" Legs	1000T300-97	10" 12 Gauge Deep Leg Track 3" Legs
	12"	1200T200-97	12" 12 Gauge Deep Leg Track 2" Legs	1200T250-97	12" 12 Gauge Deep Leg Track 2-1/2" Legs	1200T300-97	12" 12 Gauge Deep Leg Track 3" Legs
	14"	1400T200-97	14" 12 Gauge Deep Leg Track 2" Legs	1400T250-97	14" 12 Gauge Deep Leg Track 2-1/2" Legs	1400T300-97	14" 12 Gauge Deep Leg Track 3" Legs
	16"	1600T200-97	16" 12 Gauge Deep Leg Track 2" Legs	1600T250-97	16" 12 Gauge Deep Leg Track 2-1/2" Legs	1600T300-97	16" 12 Gauge Deep Leg Track 3" Legs
10 Gauge (118)	2-1/2"	250T200-118	2-1/2" 10 Gauge Deep Leg Track 2" Legs	250T250-118	2-1/2" 10 Gauge Deep Leg Track 2-1/2" Legs	250T300-118	2-1/2" 10 Gauge Deep Leg Track 3" Legs
	3-5/8"	362T200-118	3-5/8" 10 Gauge Deep Leg Track 2" Legs	362T250-118	3-5/8" 10 Gauge Deep Leg Track 2-1/2" Legs	362T300-118	3-5/8" 10 Gauge Deep Leg Track 3" Legs
	4"	400T200-118	4" 10 Gauge Deep Leg Track 2" Legs	400T250-118	4" 10 Gauge Deep Leg Track 2-1/2" Legs	400T300-118	4" 10 Gauge Deep Leg Track 3" Legs
	6"	600T200-118	6" 10 Gauge Deep Leg Track 2" Legs	600T250-118	6" 10 Gauge Deep Leg Track 2-1/2" Legs	600T300-118	6" 10 Gauge Deep Leg Track 3" Legs
	8"	800T200-118	8" 10 Gauge Deep Leg Track 2" Legs	800T250-118	8" 10 Gauge Deep Leg Track 2-1/2" Legs	800T300-118	8" 10 Gauge Deep Leg Track 3" Legs
	10"	1000T200-118	10" 10 Gauge Deep Leg Track 2" Legs	1000T250-118	10" 10 Gauge Deep Leg Track 2-1/2" Legs	1000T300-118	10" 10 Gauge Deep Leg Track 3" Legs
	12"	1200T200-118	12" 10 Gauge Deep Leg Track 2" Legs	1200T250-118	12" 10 Gauge Deep Leg Track 2-1/2" Legs	1200T300-118	12" 10 Gauge Deep Leg Track 3" Legs
	14"	1400T200-118	14" 10 Gauge Deep Leg Track 2" Legs	1400T250-118	14" 10 Gauge Deep Leg Track 2-1/2" Legs	1400T300-118	14" 10 Gauge Deep Leg Track 3" Legs
	16"	1600T200-118	16" 10 Gauge Deep Leg Track 2" Legs	1600T250-118	16" 10 Gauge Deep Leg Track 2-1/2" Legs	1600T300-118	16" 10 Gauge Deep Leg Track 3" Legs

Slotted Track

Slotted Track (Deflection Track / Slip Track) for Head-of-Wall Movement Accommodation

Slotted track, also commonly referred to as deflection track, slip track, or slotted deflection track, is a specialized cold formed metal track essential for non-load bearing wall assemblies in modern steel framing systems. Designed specifically for head-of-wall deflection, this metal deflection track features strategically placed vertical slots that allow metal studs to move freely up and down—typically accommodating up to 1-1/2″ to 2″ of vertical movement (depending on leg length and design)—without transferring damaging axial (vertical) loads from the primary building structure to the partition walls.

This prevents issues like buckling, cracking in drywall finishes, or structural damage caused by building movement from live loads, floor/roof deflection, thermal expansion, wind, seismic activity, or snow loads. It’s particularly vital in multi-story buildings, high-rise construction, commercial interiors, exterior curtain walls, and large open spaces where significant structural deflection occurs between floors or between the slab and roof.

Advantages of slotted deflection track include:

Superior protection against axial load transfer to studs
Reduced risk of finish cracking and callbacks
Simplified installation compared to deflection clips or double-track systems (often one-piece design with no extra components needed)
Compliance with fire-rated head-of-wall joint systems (many UL-classified for 1–4 hour ratings)
Enhanced durability and long-term performance in dynamic environments

At The Formetal Company, we manufacture high-quality slotted deflection track, structural track, and related steel framing components in custom lengths to meet your project needs—contact us for technical specs, load tables, or quotes on deflection track solutions for interior partitions, curtain walls, and more.

Slotted Track Name	Common Name
250SLT250-30	2-½″ 20 Gauge Slotted Track
362SLT250-30	3-⅝″ 20 Gauge Slotted Track
400SLT250-30	4″ 20 Gauge Slotted Track
600SLT250-30	6″ 20 Gauge Slotted Track
800SLT250-30	8″ 20 Gauge Slotted Track
1000SLT250-30	10″ 20 Gauge Slotted Track
250SLT250-33	2-½″ 20 Gauge Slotted Track
362SLT250-33	3-⅝″ 20 Gauge Slotted Track
400SLT250-33	4″ 20 Gauge Slotted Track
600SLT250-33	6″ 20 Gauge Slotted Track
800SLT250-33	8″ 20 Gauge Slotted Track
1000SLT250-33	10″ 20 Gauge Slotted Track
250SLT250-43	2-½″ 18 Gauge Slotted Track
362SLT250-43	3-⅝″ 18 Gauge Slotted Track
400SLT250-43	4″ 18 Gauge Slotted Track
600SLT250-43	6″ 18 Gauge Slotted Track
800SLT250-43	8″ 18 Gauge Slotted Track
1000SLT250-43	10″ 18 Gauge Slotted Track
250SLT250-54	2-½″ 16 Gauge Slotted Track
362SLT250-54	3-⅝″ 16 Gauge Slotted Track
400SLT250-54	4″ 16 Gauge Slotted Track
600SLT250-54	6″ 16 Gauge Slotted Track
800SLT250-54	8″ 16 Gauge Slotted Track
1000SLT250-54	10″ 16 Gauge Slotted Track
250SLT250-68	2-½″ 14 Gauge Slotted Track
362SLT250-68	3-⅝″ 14 Gauge Slotted Track
400SLT250-68	4″ 14 Gauge Slotted Track
600SLT250-68	6″ 14 Gauge Slotted Track
800SLT250-68	8″ 14 Gauge Slotted Track
1000SLT250-68	10″ 14 Gauge Slotted Track

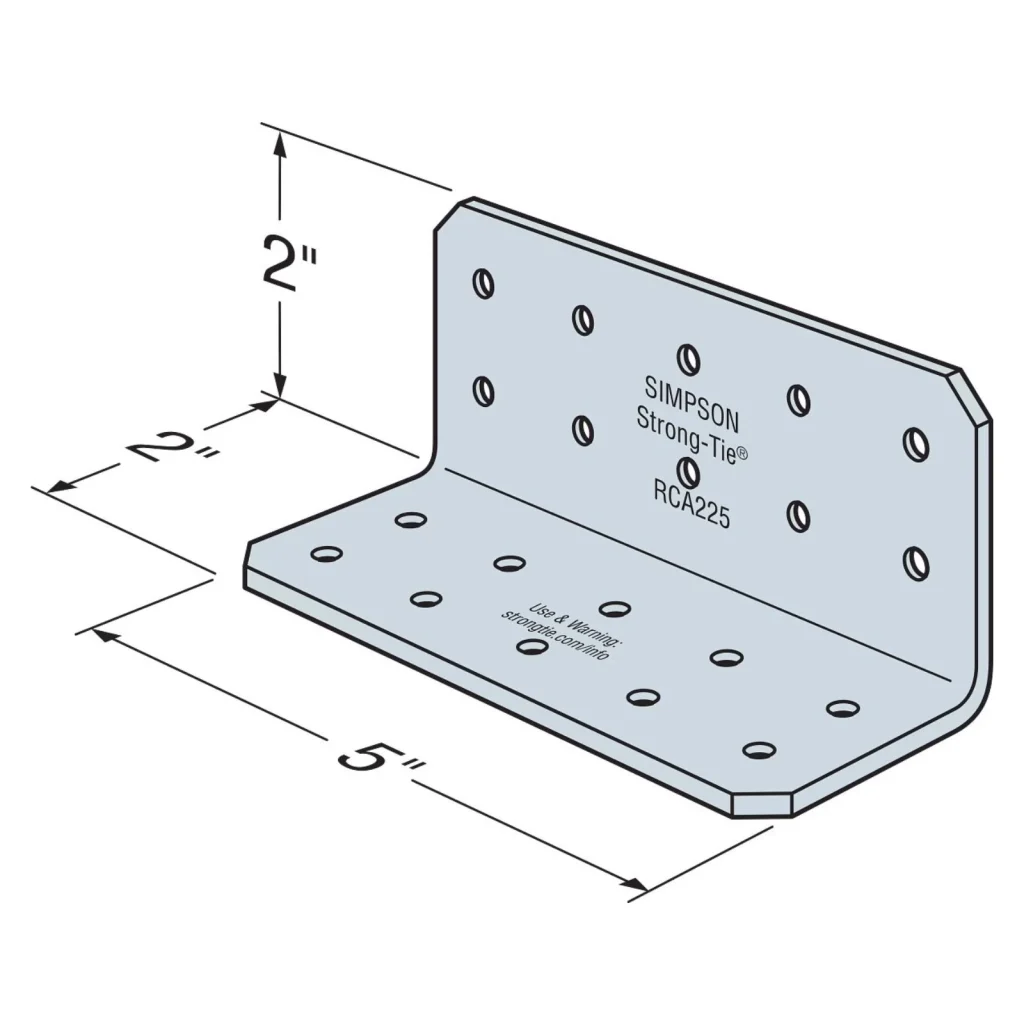

Framing Angle

Framing Angle (L-Angle / Clip Angle) for Cold-Formed Steel Connections

Framing angle, also known as L-angle, cold formed metal angle, clip angle, or corner angle, is a versatile cold formed steel connector widely used in metal stud framing and steel framing systems. Manufactured from high-strength galvanized steel (typically in gauges matching studs and track, such as 18–54 mils), these 90-degree bent angles provide reliable reinforcement, connection, and load transfer in both non-structural and structural applications.

Common uses include:

Connecting and reinforcing metal studs to tracks, headers, jambs, or bridging channels (e.g., securing door/window headers to king studs or attaching U-channel/CRC bridging through stud knockouts).
Reinforcing corners in partition walls, curtain wall framing, or bypass systems.
Serving as concrete pour stops, roof ridge angles, connection struts, or miscellaneous attachments in exterior and interior framing.
Providing rigid support for stud blocking, sill/jamb connections, or transferring lateral/gravity loads in light-duty structural setups.

Unlike basic corner beads (for drywall finishing), framing angles are engineered for structural integrity, often with pre-punched holes for fast attachment using self-drilling screws. They help minimize movement, prevent buckling under load, and ensure stable connections in dynamic environments like multi-story buildings, commercial interiors, warehouses, or industrial projects.

Key benefits of framing angle in cold formed steel framing include:

Enhanced connection strength and rigidity for secure attachments between framing members.
Superior dimensional stability and resistance to warping, twisting, or corrosion (thanks to galvanized coatings).
Faster installation with simple screw fastening—no welding required in most cases—reducing labor time and costs.
Versatility across non-load bearing partitions, load-bearing walls, curtain walls, and bracing applications.
Compliance with building codes when used per engineering specs, load tables, and proper spacing/bracing guidelines.

Angle Name	Common Name
100A100-18	1″ 25 Gauge Angle
150A150-18	1-½″ 25 Gauge Angle
200A200-18	2″ 25 Gauge Angle
250A250-18	2-½″ 25 Gauge Angle
300A300-18	3″ 25 Gauge Angle
100A100-30	1″ 20 Gauge Angle
150A150-30	1-½″ 20 Gauge Angle
200A200-30	2″ 20 Gauge Angle
250A250-30	2-½″ 20 Gauge Angle
300A300-30	3″ 20 Gauge Angle
100A100-33	1″ 20 Gauge Angle
150A150-33	1-½″ 20 Gauge Angle
200A200-33	2″ 20 Gauge Angle
250A250-33	2-½″ 20 Gauge Angle
300A300-33	3″ 20 Gauge Angle
100A100-43	1″ 18 Gauge Angle
150A150-43	1-½″ 18 Gauge Angle
200A200-43	2″ 18 Gauge Angle
250A250-43	2-½″ 18 Gauge Angle
300A300-43	3″ 18 Gauge Angle
100A100-54	1″ 16 Gauge Angle
150A150-54	1-½″ 16 Gauge Angle
200A200-54	2″ 16 Gauge Angle
250A250-54	2-½″ 16 Gauge Angle
300A300-54	3″ 16 Gauge Angle
100A100-68	1″ 14 Gauge Angle
150A150-68	1-½″ 14 Gauge Angle
200A200-68	2″ 14 Gauge Angle
250A250-68	2-½″ 14 Gauge Angle
300A300-68	3″ 14 Gauge Angle

Flat Strap

Flat Strapping for Bracing in Cold-Formed Steel Framing Systems

Flat strapping (also called flat strap bracing, cold formed steel flat strap, or tension strapping) is a multipurpose, high-strength galvanized steel component essential for bolstering the lateral stability and overall performance of cold formed steel (CFS) wall assemblies. Available in various widths and thicknesses, it serves as an economical solution for resisting racking, rotation, and buckling under demanding loads.

One of its primary roles is in diagonal bracing for shear walls and lateral force resisting systems. Installed in an X-configuration (crossing diagonals on one or both sides of the wall), flat strap bracing acts in tension to counteract wind and seismic forces, preventing wall racking in load-bearing and non-load-bearing CFS structures. This makes it a go-to choice for residential, commercial, industrial, and multi-story projects where shear resistance is required—often paired with gusset plates or direct stud/track connections for secure load transfer.

In horizontal applications, flat strapping delivers effective lateral bracing for metal studs, particularly those deeper than 6 inches. Placed at regular intervals (e.g., mid-height or third-points), it counters stud rotation and minor-axis buckling caused by axial compression, wind pressure, or combined loads. When combined with solid blocking or shear blocks, this setup anchors longitudinal forces, maintains wall plumbness, and enhances overall rigidity—reducing the risk of deformation and ensuring code-compliant performance.

Key advantages of incorporating flat strapping in CFS framing include:

Proven tension-only resistance to lateral forces for reliable shear and bracing.
Simple, screw-fastened installation (no welding needed in most cases) for faster on-site assembly.
Versatility across bridging, tension strapping, and shear wall applications.
Long-term corrosion resistance via hot-dipped galvanization.
Cost-effective alternative to heavier bracing methods while meeting AISI, IBC, and seismic design standards (when properly tensioned and detailed).

Flat Strap Table

Size	Flat Strap Name	Gauge	Common Name
1”	100FS-18	25	25 Gauge 1” Flat Strap
	100FS-30	20	20 Gauge 1” Flat Strap
	100FS-33	20	20 Gauge 1” Flat Strap
	100FS-43	18	18 Gauge 1” Flat Strap
	100FS-54	16	16 Gauge 1” Flat Strap
	100FS-68	14	14 Gauge 1” Flat Strap
	100FS-97	12	12 Gauge 1” Flat Strap
1.5”	150FS-18	25	25 Gauge 1-1/2” Flat Strap
	150FS-30	20	20 Gauge 1-1/2” Flat Strap
	150FS-33	20	20 Gauge 1-1/2” Flat Strap
	150FS-43	18	18 Gauge 1-1/2” Flat Strap
	150FS-54	16	16 Gauge 1-1/2” Flat Strap
	150FS-68	14	14 Gauge 1-1/2” Flat Strap
	150FS-97	12	12 Gauge 1-1/2” Flat Strap
2”	200FS-18	25	25 Gauge 2” Flat Strap
	200FS-30	20	20 Gauge 2” Flat Strap
	200FS-33	20	20 Gauge 2” Flat Strap
	200FS-43	18	18 Gauge 2” Flat Strap
	200FS-54	16	16 Gauge 2” Flat Strap
	200FS-68	14	14 Gauge 2” Flat Strap
	200FS-97	12	12 Gauge 2” Flat Strap
2.5”	250FS-18	25	25 Gauge 2-1/2” Flat Strap
	250FS-30	20	20 Gauge 2-1/2” Flat Strap
	250FS-33	20	20 Gauge 2-1/2” Flat Strap
	250FS-43	18	18 Gauge 2-1/2” Flat Strap
	250FS-54	16	16 Gauge 2-1/2” Flat Strap
	250FS-68	14	14 Gauge 2-1/2” Flat Strap
	250FS-97	12	12 Gauge 2-1/2” Flat Strap
3”	300FS-18	25	25 Gauge 3” Flat Strap
	300FS-30	20	20 Gauge 3” Flat Strap
	300FS-33	20	20 Gauge 3” Flat Strap
	300FS-43	18	18 Gauge 3” Flat Strap
	300FS-54	16	16 Gauge 3” Flat Strap
	300FS-68	14	14 Gauge 3” Flat Strap
	300FS-97	12	12 Gauge 3” Flat Strap
4”	400FS-18	25	25 Gauge 4” Flat Strap
	400FS-30	20	20 Gauge 4” Flat Strap
	400FS-33	20	20 Gauge 4” Flat Strap
	400FS-43	18	18 Gauge 4” Flat Strap
	400FS-54	16	16 Gauge 4” Flat Strap
	400FS-68	14	14 Gauge 4” Flat Strap
	400FS-97	12	12 Gauge 4” Flat Strap
5”	500FS-18	25	25 Gauge 5” Flat Strap
	500FS-30	20	20 Gauge 5” Flat Strap
	500FS-33	20	20 Gauge 5” Flat Strap
	500FS-43	18	18 Gauge 5” Flat Strap
	500FS-54	16	16 Gauge 5” Flat Strap
	500FS-68	14	14 Gauge 5” Flat Strap
	500FS-97	12	12 Gauge 5” Flat Strap
6”	600FS-18	25	25 Gauge 6” Flat Strap
	600FS-30	20	20 Gauge 6” Flat Strap
	600FS-33	20	20 Gauge 6” Flat Strap
	600FS-43	18	18 Gauge 6” Flat Strap
	600FS-54	16	16 Gauge 6” Flat Strap
	600FS-68	14	14 Gauge 6” Flat Strap
	600FS-97	12	12 Gauge 6” Flat Strap
7”	700FS-18	25	25 Gauge 7” Flat Strap
	700FS-30	20	20 Gauge 7” Flat Strap
	700FS-33	20	20 Gauge 7” Flat Strap
	700FS-43	18	18 Gauge 7” Flat Strap
	700FS-54	16	16 Gauge 7” Flat Strap
	700FS-68	14	14 Gauge 7” Flat Strap
	700FS-97	12	12 Gauge 7” Flat Strap
8”	800FS-18	25	25 Gauge 8” Flat Strap
	800FS-30	20	20 Gauge 8” Flat Strap
	800FS-33	20	20 Gauge 8” Flat Strap
	800FS-43	18	18 Gauge 8” Flat Strap
	800FS-54	16	16 Gauge 8” Flat Strap
	800FS-68	14	14 Gauge 8” Flat Strap
	800FS-97	12	12 Gauge 8” Flat Strap
9”	900FS-18	25	25 Gauge 9” Flat Strap
	900FS-30	20	20 Gauge 9” Flat Strap
	900FS-33	20	20 Gauge 9” Flat Strap
	900FS-43	18	18 Gauge 9” Flat Strap
	900FS-54	16	16 Gauge 9” Flat Strap
	900FS-68	14	14 Gauge 9” Flat Strap
	900FS-97	12	12 Gauge 9” Flat Strap
10”	1000FS-18	25	25 Gauge 10” Flat Strap
	1000FS-30	20	20 Gauge 10” Flat Strap
	1000FS-33	20	20 Gauge 10” Flat Strap
	1000FS-43	18	18 Gauge 10” Flat Strap
	1000FS-54	16	16 Gauge 10” Flat Strap
	1000FS-68	14	14 Gauge 10” Flat Strap
	1000FS-97	12	12 Gauge 10” Flat Strap
11”	1100FS-18	25	25 Gauge 11” Flat Strap
	1100FS-30	20	20 Gauge 11” Flat Strap
	1100FS-33	20	20 Gauge 11” Flat Strap
	1100FS-43	18	18 Gauge 11” Flat Strap
	1100FS-54	16	16 Gauge 11” Flat Strap
	1100FS-68	14	14 Gauge 11” Flat Strap
	1100FS-97	12	12 Gauge 11” Flat Strap
12”	1200FS-18	25	25 Gauge 12” Flat Strap
	1200FS-30	20	20 Gauge 12” Flat Strap
	1200FS-33	20	20 Gauge 12” Flat Strap
	1200FS-43	18	18 Gauge 12” Flat Strap
	1200FS-54	16	16 Gauge 12” Flat Strap
	1200FS-68	14	14 Gauge 12” Flat Strap
	1200FS-97	12	12 Gauge 12” Flat Strap

Furring/Hat Channel

Furring Channel / Hat Channel for Leveling and Framing in Cold-Formed Steel Systems

Furring channel, also widely known as hat channel, metal furring channel, steel hat channel, drywall furring channel, 7/8″ hat channel, or galvanized furring channel, is a versatile, corrosion-resistant metal framing component essential in modern construction and cold-formed steel framing. This hat-shaped furring channel (typically manufactured from galvanized steel in gauges such as 25, 20, 18, or 16) is primarily designed to level uneven surfaces on masonry walls, concrete walls, concrete block walls, poured concrete, or ceilings, providing a flat, even substrate ideal for attaching finish materials including drywall, gypsum board, plaster, gypsum panels, acoustic ceiling tiles, paneling, or other interior finishes.

In residential, commercial, and industrial construction projects, furring channels (including resilient furring channels and sound-rated furring channels for acoustic performance) deliver reliable noncombustible furring solutions for interior walls, exterior walls, suspended ceilings, drop ceilings, ceiling assemblies, and wall furring systems. They simplify drywall installation over irregular or uneven substrates, support sheathing, siding, exterior cladding, metal panels, insulation boards, or decking, and create critical ventilation cavities, air gaps, or drainage planes in exterior wall assemblies to control moisture buildup, reduce condensation, prevent mold, minimize corrosion, and improve overall building envelope durability against fire, water damage, and environmental factors.Structurally, hat channels provide excellent lateral bracing, restraint, and support in cold-formed steel framing applications, including bracing for trusses, joists, purlins, or other secondary framing members.

Heavier-gauge options allow for longer spans, higher load capacities, and enhanced performance in demanding environments. Whether used for wall furring, ceiling furring, soundproofing assemblies with resilient sound isolation clips, improving acoustic ratings, creating space for insulation, electrical wiring, plumbing, HVAC ducts, or utilities, furring channels and hat channels offer a reliable, adaptable, cost-effective, and code-compliant metal framing solution for both interior and exterior applications in cold-formed steel construction, light-gauge steel framing, and general building projects.

Size	Furring Channel Name	Common Name
⅞”	087F125-18	⅞” 25 Gauge Furring Channel
	087F125-30	⅞” 20 Gauge Furring Channel
	087F125-33	⅞” 20 Gauge Furring Channel
	087F125-43	⅞” 18 Gauge Furring Channel
	087F125-54	⅞” 16 Gauge Furring Channel
	087F125-68	⅞” 14 Gauge Furring Channel
1-½”	150F125-18	1-½” 25 Gauge Furring Channel
	150F125-30	1-½” 20 Gauge Furring Channel
	150F125-33	1-½” 20 Gauge Furring Channel
	150F125-43	1-½” 18 Gauge Furring Channel
	150F125-54	1-½” 16 Gauge Furring Channel
	150F125-68	1-½” 14 Gauge Furring Channel

Z Furring Channel

Z-Furring Channel for Concrete and CMU Walls

Z-furring, also known as Z-furring channel, Z-metal furring, Z-hat channel, or galvanized Z-furring, is a specialized cold-formed steel framing component engineered to create a flat, level surface over uneven substrates such as concrete walls, poured concrete, CMU block walls (concrete masonry units), masonry, or tilt-up concrete. Its distinctive Z-shaped profile efficiently bridges irregularities, gaps, and inconsistencies in the substrate, delivering a strong, reliable fastening plane for attaching drywall, gypsum board, plaster, acoustic panels, cement board, or other interior finish materials in both residential and commercial construction.

In addition to leveling surfaces for superior drywall installation and wall finishing, Z-furring channels create a continuous air cavity or insulation void between the furring and the structural wall. This cavity provides essential space for installing rigid foam insulation, fiberglass batts, mineral wool, spray foam, or other thermal barriers to improve energy efficiency, while also offering room for electrical wiring, low-voltage cabling, plumbing lines, or other utilities. The design helps reduce thermal bridging, control moisture migration, enhance fire resistance, and improve overall building envelope performance in interior wall assemblies over concrete or CMU.

Whether used in basement finishing, garage conversions, commercial interiors, retail spaces, schools, hospitals, or any project requiring furring over masonry or concrete, Z-furring delivers a durable, code-compliant, noncombustible, and cost-effective metal framing solution for achieving smooth, professional-grade wall finishes with added insulation and service space benefits.

Size	Z Furring Name	Gauge	Common Name
1”	100ZF-18	25	1” 25 Gauge Z Furring Channel
	100ZF-30	20	1” 20 Gauge Z Furring Channel
	100ZF-33	20	1” 20 Gauge Z Furring Channel
	100ZF-43	18	1” 18 Gauge Z Furring Channel
	100ZF-54	16	1” 16 Gauge Z Furring Channel
	100ZF-68	14	1” 14 Gauge Z Furring Channel
1-1/2”	150ZF-18	25	1-1/2” 25 Gauge Z Furring Channel
	150ZF-30	20	1-1/2” 20 Gauge Z Furring Channel
	150ZF-33	20	1-1/2” 20 Gauge Z Furring Channel
	150ZF-43	18	1-1/2” 18 Gauge Z Furring Channel
	150ZF-54	16	1-1/2” 16 Gauge Z Furring Channel
	150ZF-68	14	1-1/2” 14 Gauge Z Furring Channel
2”	200ZF-18	25	2” 25 Gauge Z Furring Channel
	200ZF-30	20	2” 20 Gauge Z Furring Channel
	200ZF-33	20	2” 20 Gauge Z Furring Channel
	200ZF-43	18	2” 18 Gauge Z Furring Channel
	200ZF-54	16	2” 16 Gauge Z Furring Channel
	200ZF-68	14	2” 14 Gauge Z Furring Channel
2-1/2”	250ZF-18	25	2-1/2” 25 Gauge Z Furring Channel
	250ZF-30	20	2-1/2” 20 Gauge Z Furring Channel
	250ZF-33	20	2-1/2” 20 Gauge Z Furring Channel
	250ZF-43	18	2-1/2” 18 Gauge Z Furring Channel
	250ZF-54	16	2-1/2” 16 Gauge Z Furring Channel
	250ZF-68	14	2-1/2” 14 Gauge Z Furring Channel
3”	300ZF-18	25	3” 25 Gauge Z Furring Channel
	300ZF-30	20	3” 20 Gauge Z Furring Channel
	300ZF-33	20	3” 20 Gauge Z Furring Channel
	300ZF-43	18	3” 18 Gauge Z Furring Channel
	300ZF-54	16	3” 16 Gauge Z Furring Channel
	300ZF-68	14	3” 14 Gauge Z Furring Channel

Cold Roll Channel

Cold Rolled Channel (CRC) for Metal Framing – Heavy-Duty Support in Drywall, Suspended Ceilings & Structural Assemblies

Cold Rolled Channel, commonly abbreviated as CRC, cold-rolled steel channel, CRC channel, 16-gauge CRC, cold-formed channel, or black iron channel, is a robust, precision-manufactured metal framing component widely used in commercial and residential construction for superior strength and load-bearing performance. Produced through the cold-rolling process from high-quality steel (typically in 16-gauge, 14-gauge, or heavier), cold rolled channels deliver exceptional rigidity, straightness, and dimensional accuracy compared to hot-rolled alternatives, making them the preferred choice for demanding applications such as suspended ceiling grids, drywall furring and bracing, truss bridging, floor and roof joist bridging, lateral bracing, purlin support, and structural reinforcement in cold-formed steel framing systems.

In commercial drywall installations, office buildings, retail spaces, schools, hospitals, warehouses, and industrial facilities, CRC channels provide reliable horizontal or vertical support for attaching metal studs, furring channels, hat channels, resilient channels, or drywall directly, while also serving as main runners in suspended ceiling systems, acoustic ceiling grids, and light-gauge steel framing. Their galvanized or prime-painted finishes offer excellent corrosion resistance, durability against fire, moisture, and long-term environmental exposure, ensuring code-compliant performance in non-load-bearing and secondary structural roles. Whether used for ceiling suspension, wall reinforcement, bridging and blocking, header support, or creating rigid frames for heavy fixtures and mechanical systems, cold rolled channel remains a cost-effective, versatile, and high-strength metal framing solution trusted by contractors for reliable, professional-grade results in modern building projects.

CRC Name	Common Name
075U50-54	¾” 16 Gauge Cold Roll Channel
150U50-54	1-½” 16 Gauge Cold Roll Channel
200U50-54	2” 16 Gauge Cold Roll Channel

Common Clips

Common Clips for Cold-Formed Steel Framing – Bridging Clips, Deflection Clips, Anchor Clips & More for Metal Stud Walls & Drywall Installation

Common clips in cold-formed steel framing (also known as metal framing clips, CFS connectors, steel stud clips, bridging clips, deflection clips, anchor clips, bypass clips, rigid clips, support clips, and lateral bracing clips) are essential galvanized steel components used to create secure, code-compliant connections in light-gauge steel construction, non-load-bearing walls, load-bearing walls, curtain wall systems, exterior bypass framing, interior partitions, suspended ceilings, and drywall assemblies. These versatile cold-formed steel connectors (typically 18-12 gauge, with G60/G90 coatings for corrosion resistance) facilitate lateral bridging with cold-rolled channel (CRC) or U-channel, provide vertical deflection for head-of-wall movement, anchor studs to concrete foundations or slabs, secure joists, trusses, headers, and bypass conditions, and ensure structural stability against wind, seismic, and live loads per IBC, AISI, and ASTM standards.

Popular types include bridge clips (e.g., FastBridge™, BridgeClip®) for quick friction-fit attachment of bridging channels to studs, deflection clips (e.g., VertiClip®, Top Deflection Clip) for allowing up to 3″ of vertical movement in curtain walls and tall partitions without load transfer, anchor clips (e.g., StiffClip®, Moment Clips) for rigid stud-to-foundation or slab connections, bypass clips (e.g., Universal Bypass Clips, Hybrid Bypass Clips) for exterior wall attachments bypassing the primary structure, angle clips and support clips (e.g., EasyClip™ S-Series, E-Series) for rigid stand-off or miscellaneous framing ties, and resilient clips or sound isolation clips for acoustic-rated drywall installations. Whether used in commercial buildings, high-rise curtain walls, mid-rise structures, residential metal framing, office interiors, schools, hospitals, or industrial facilities, common metal framing clips deliver fast installation, reduced labor costs, enhanced lateral bracing, deflection accommodation, and long-term durability in modern cold-formed steel framing systems.

Curtain Wall Clips

Curtain wall clips from top manufacturers—Simpson Strong-Tie, ClarkDietrich, The Steel Network (TSN), and MarinoWARE—deliver reliable deflection, slide, bypass, and bridging connections for cold-formed steel curtain wall framing. These code-compliant solutions accommodate building movement, ensure vertical drift resistance, and support fast, secure installation in mid-rise and commercial projects. See a table with common Curtain Wall Clips below:

Common Curtain Wall Clips
Application	Nominal Size/Length/Notes	Simpson Strong Tie	ClarkDietrich	TSN	Marino

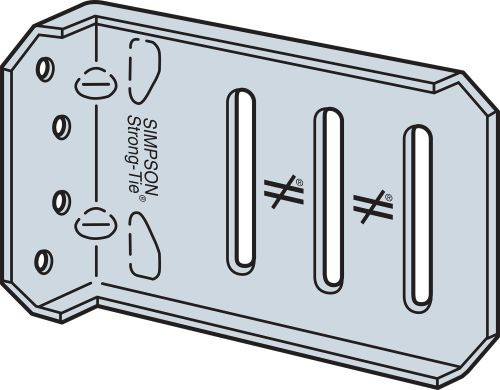

By-Pass Slide-Clip	3½" (16ga.)	SCB43.5-KT	FCSC 3.5	SLB362	WSC362
	5½" (16ga.)	SCB45.5-KT	FCSC5.5	SLB600	WSC600
	5½" (14ga.)	MSCB45.5-KT	FCSC5.5	SLB600	WSC600
	7½" (16ga.)	SCB47.5-KT	FCEC8	SLB800	WSC800
	7½" (14ga.)	MSCB47.5-KT	FCEC8	SLB800	WSC800
	9½" (16ga.)	SCB49.5-KT	FCEC10	SLB1000	WSC1000
	11½" (16ga.)	SCB411.5-KT	FCEC12	SLB1200	WSC1200

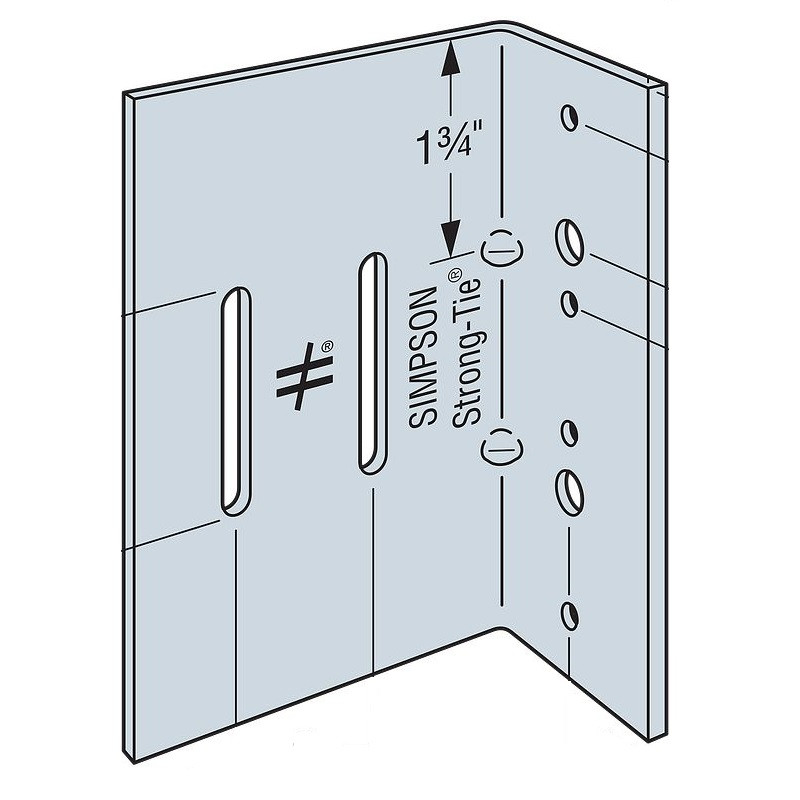

Heavy Duty By-Pass Slide-Clip	3½" (12ga.)	SC32-5/97-KT25	N/A	N/A	N/A
	6" (12ga.)	SC62-5/97-KT25	FCSC5.5 (12ga)
	6" (10ga.)	SC62-5/118-KT25	N/A
	8" (10ga.)	SC82-5/118-KT25	N/A

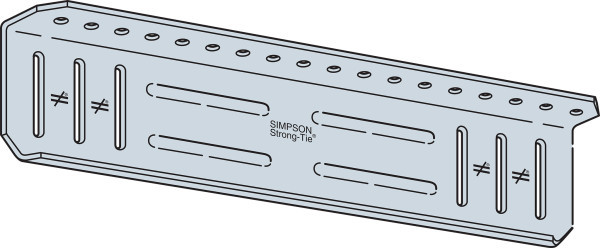

By-Pass Slide-Clip Strut	9"-18" (Can be trimmed in the field)	SSB3.518-KT	FS12	SLS362-9 SLS600-12 SLS600-15 SLS600-18 SLS800-12 SLS800-15	OUTRIGGER

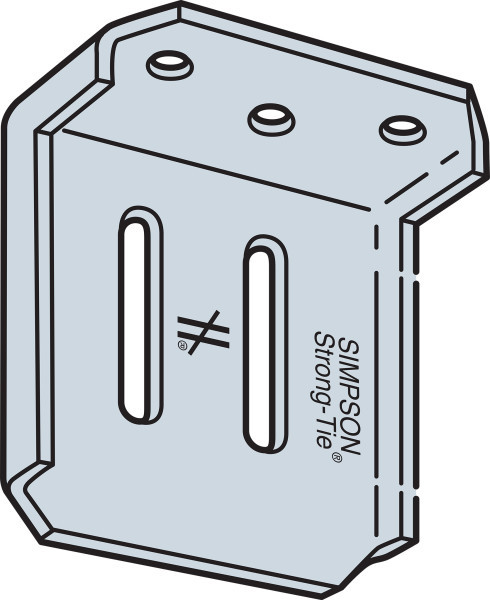

Head-of_Wall Slide-Clip	2½"	DTC	N/A	SLD250	N/A
	3¼"	SCW3.25-KT	FTC3	VTD362 VTX362 SLD362 SL362	3T1000
	5½"- 11½"	SCW5.5-KT	FTC5	VTD600 VTX600 SLD600 SL600	6T1000
Horizontal Anchorage Slide-Clip	10-3/4"	SCHA10.75-KT15	FTSC, QC3, QC4, QC6, QC8	SLT(L)-12 SLT(L)-15 SLT-9.5	NA

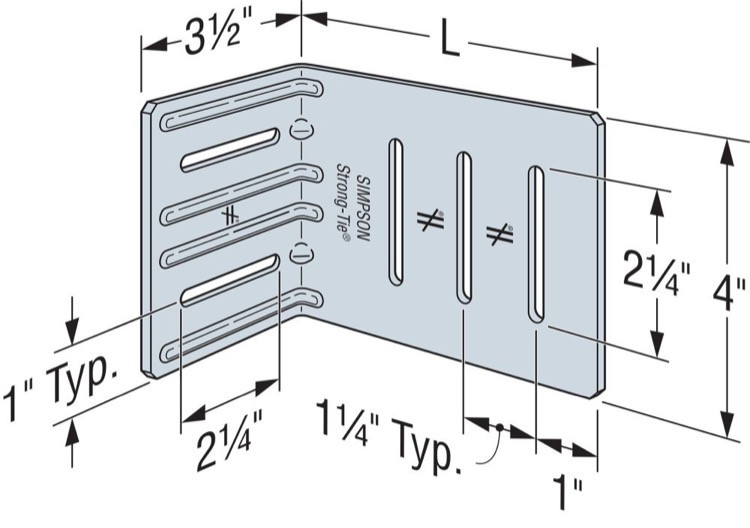

By-Pass Drift-Clip	5½" (12ga.)	IDCB45.5-KT25	N/A	DSLB600	DWSC600
Shouldered Screws	3/4" Long (For 16 & 14 ga. Clips)	XLSH78B1414-RP83	NA	NA	NA
Shouldered Screws	7/8" Long (For 12 & 10 ga. Clips)	XLSH34B1414-RP83	NA	NA	NA

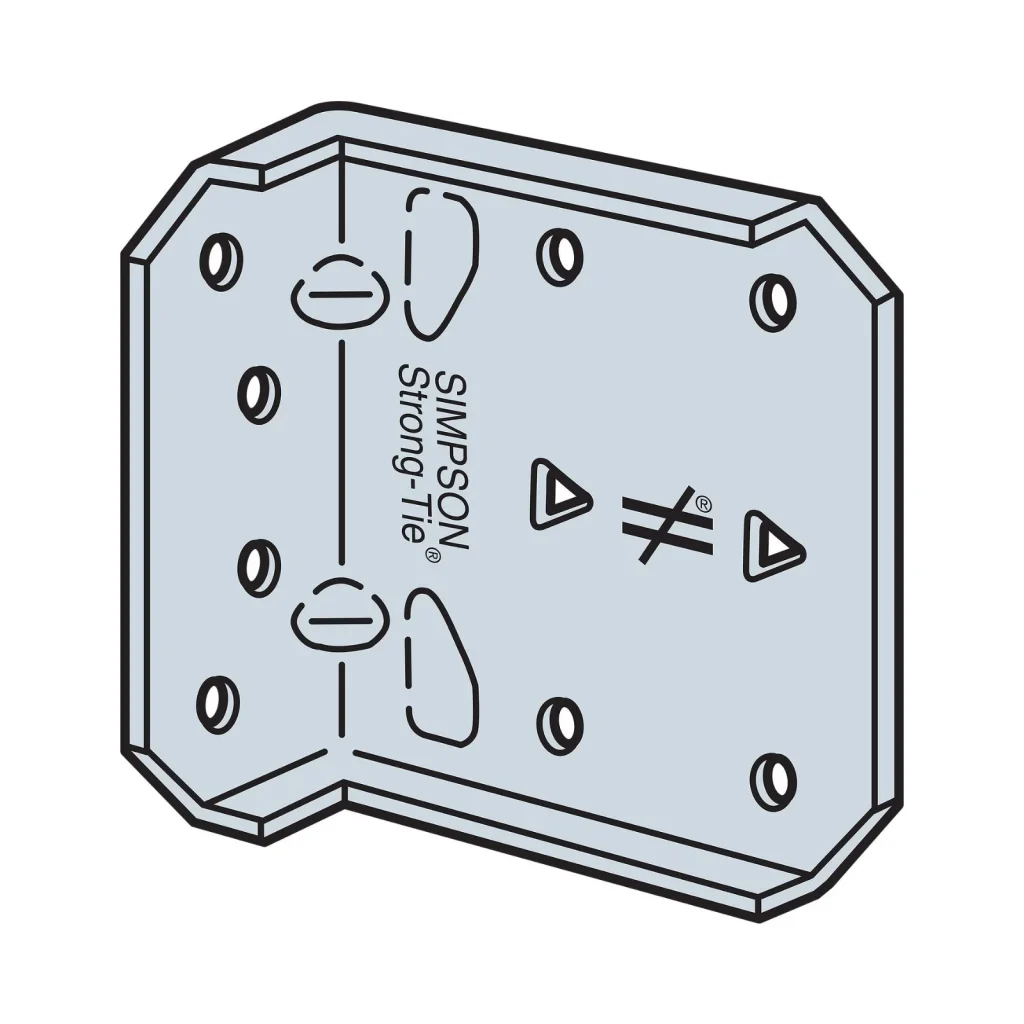

By-Pass Fixed-Clip	3½"	FCB43.5-R25	UCEC	LB362	WRC362
	5½"	FCB45.5-R25	UXRC6	LB600	WRC600
	7½"	FCB47.5-R25	UXRC8	LB800	WRC800
	9½"	FCB49.5-R25	UXRC10	LB1000	WRC1000
	11½"	FCB411.5-R25	UXRC12	LB1200	WRC1200
Heavy Duty By-Pass Fixed-Clip	3½" (12ga.)	FC32-5/97-R25	N/A	N/A	N/A
	6" (12ga.)	FC62-5/97-R25	N/A
	6" (10ga.)	FC62-5/118-R25	N/A
	8" (10ga.)	FC82-5/118-R25	N/A

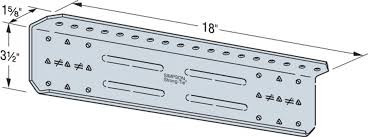

By-Pass Fixed-Clip Strut	9"-18" (Can be trimmed in the field)	FSB3.518-R25	N/A	LS900 LS1200 LS1500 LS1800	N/A

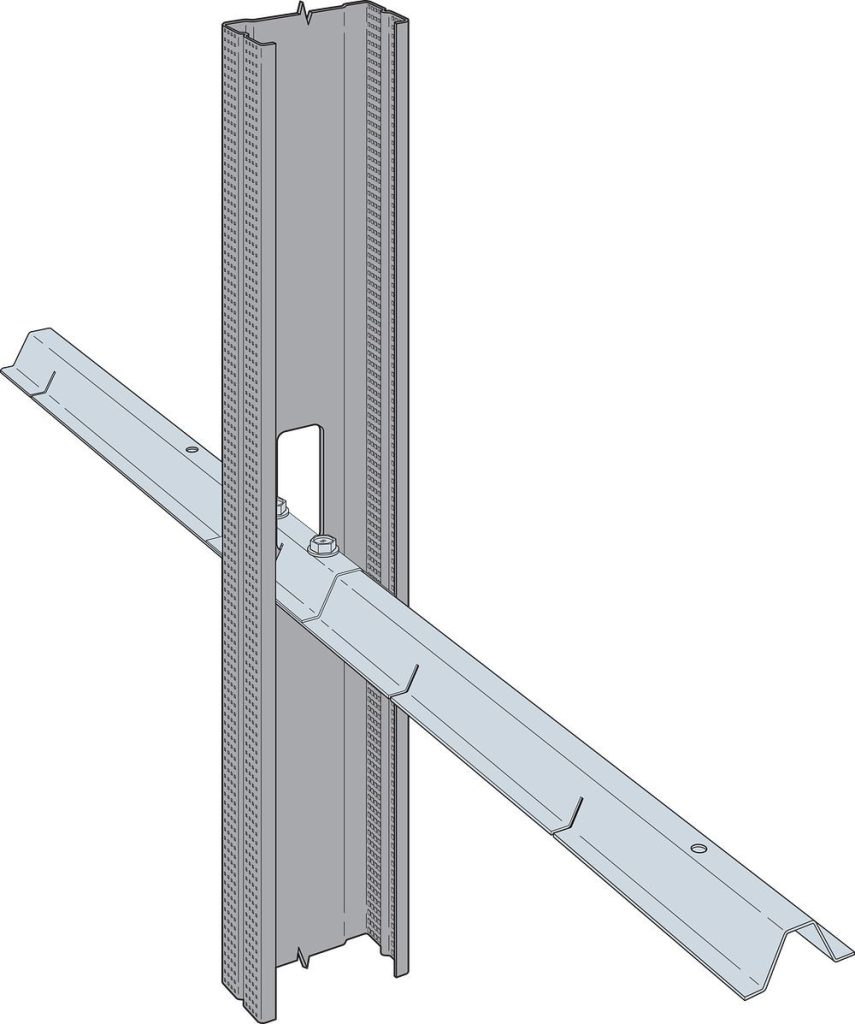

Bridging Clips

Bridging clips from leading manufacturers—Simpson Strong-Tie, ClarkDietrich, The Steel Network (TSN), and MarinoWARE—provide essential lateral bracing and stud stabilization in cold-formed steel framing. These code-compliant bridging connectors, including load-bearing and non-load-bearing options like SUBH, FastBridge, BridgeClip, and Spazzer systems, prevent rotation, ensure wall alignment, and support efficient installation for mid-rise, curtain wall, and structural projects. A table including common Bridging Clips can be found below:

**Common Bridging Clips**
Application	Nominal Size/Length/Notes	Simpson Strongtie	ClarkDietrich	TSN	Marino

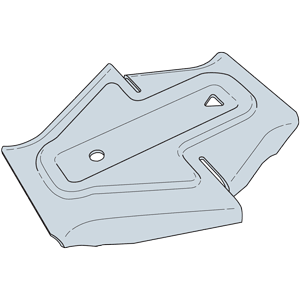

Load Bearing Bridging Clips	3⅝" - 8" Studs	LSUBH3.25-R150	FB43	BRIDGECLIP BC600 BC800	NA
		SUBH3.25-R150	FB43	BRIDGECLIP BC600 BC800	NA
		MSUBH3.25-R100	FB68	BRIDGECLIP BC600 BC800	NA

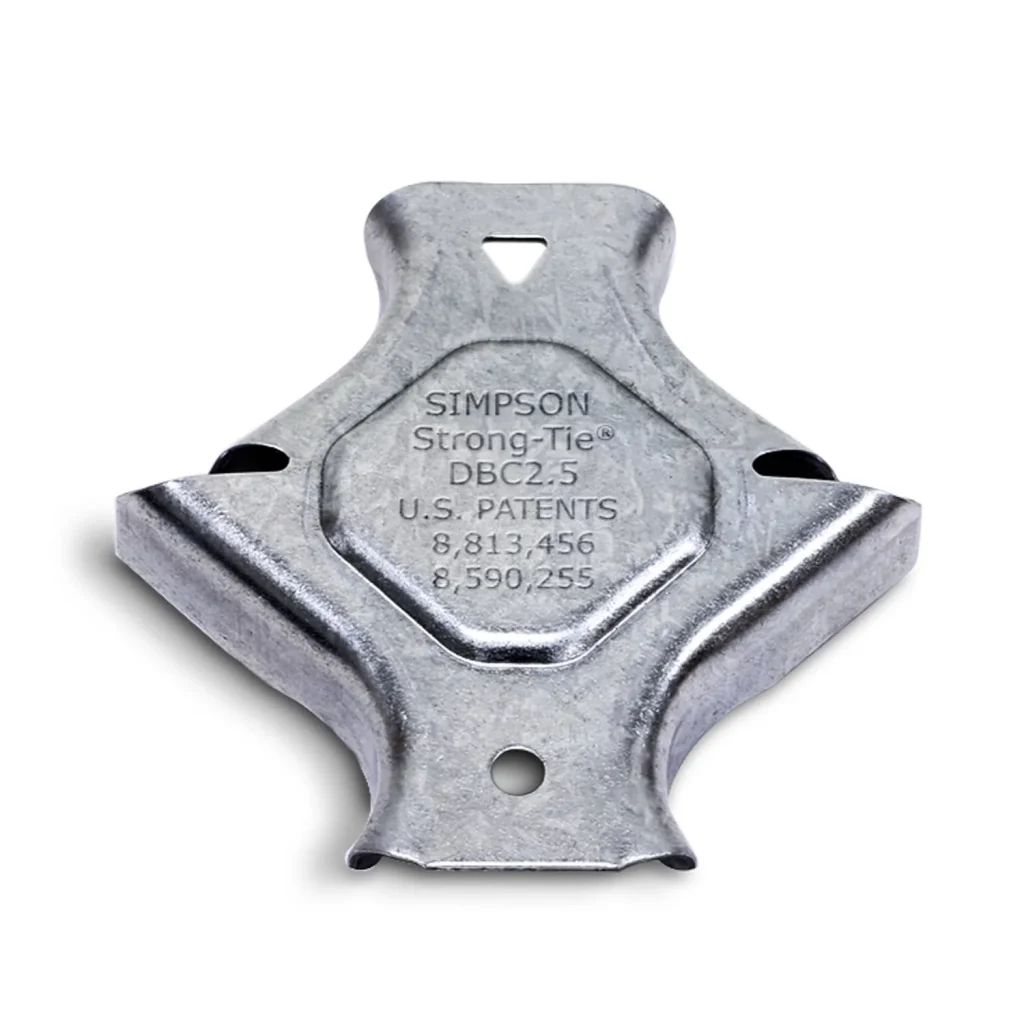

Non-Load Bearing Bridging Clips	3⅝" - 6" Studs	DBC2.5-R200		BRIDGE CLIP	NA

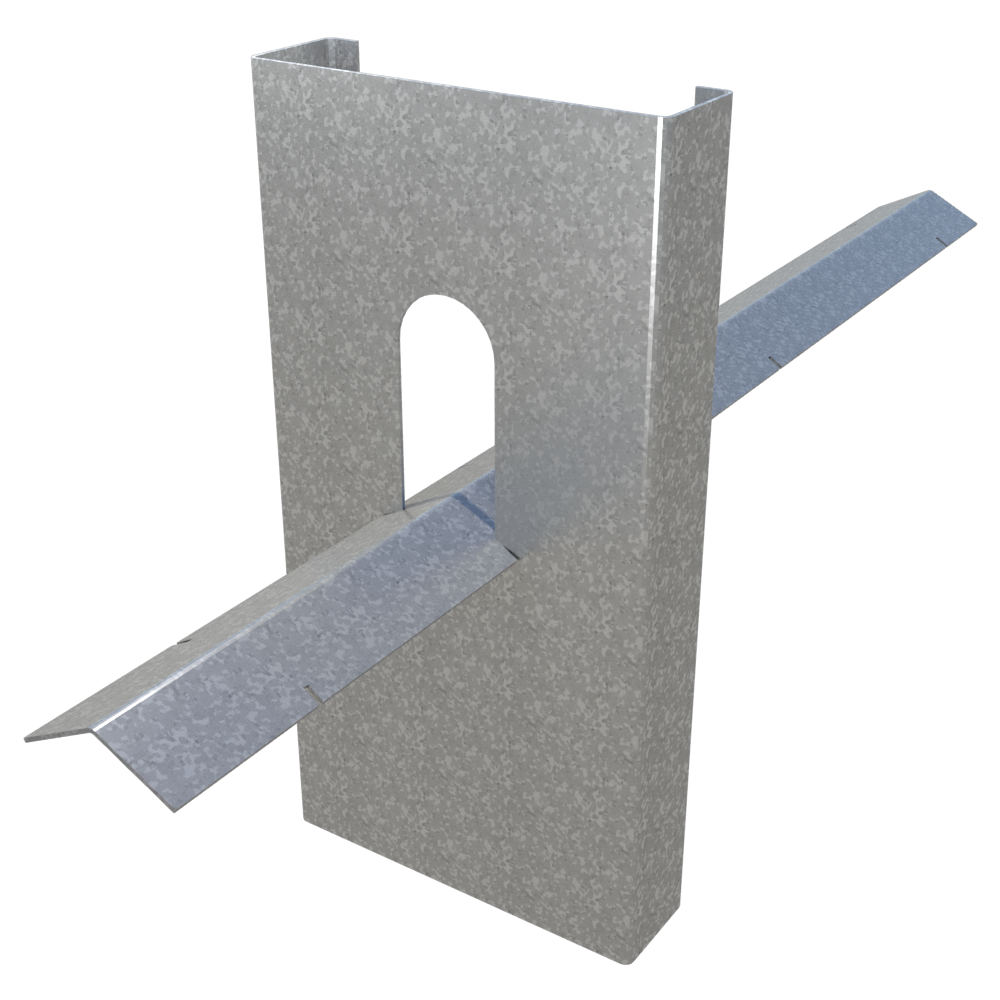

Structural Spacer-Bracer	3⅝" - 6" Studs (Sold in 51" Long Sticks in Boxes of 20)	SBR/43-R20	SPAZZER 5400	BB150	NA
Drywall Spacer-Bracer	3⅝" - 6" Studs (Sold in 51" Long Sticks in Boxes of 20)	DBR/30-R20	SPAZZER 9200	BB75	NA

Utility Clips

Utility clips from leading manufacturers—Simpson Strong-Tie, ClarkDietrich, The Steel Network (TSN), and MarinoWARE—offer versatile, multi-purpose connections for cold-formed steel framing, including joist clips, stud clips, and framing clips like SJC, SSC, UA, and JC series. These code-compliant utility connectors provide reliable stud-to-stud, stud-to-structure, and miscellaneous rigid attachments, supporting efficient installation, load transfer, and stability in floors, walls, roofs, and general steel framing projects. A table including common Utility Clips can be found below:

**Common Utility Clips**
Application	Nominal Size/Length/Notes	Simpson Strongtie	ClarkDietrich	TSN	Marino	Generic Clips

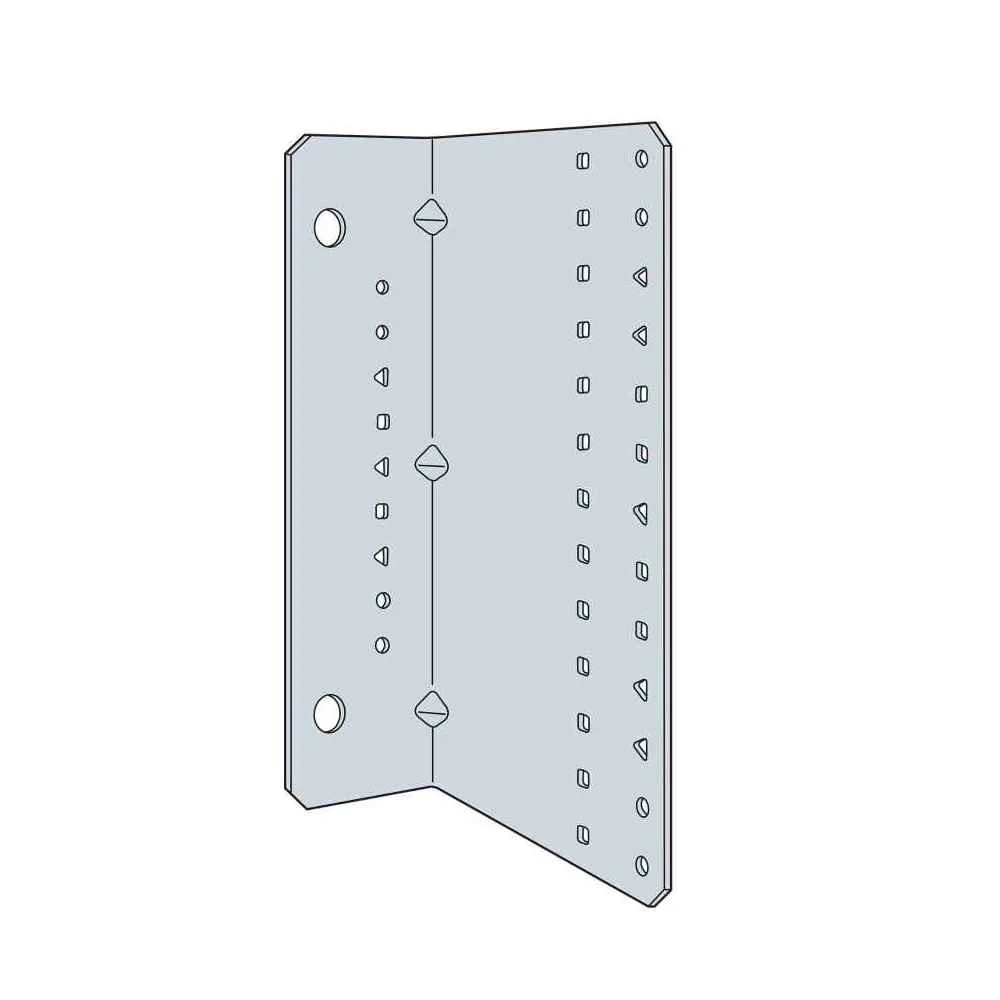

Joist Clips	2" x 4-1/2" x 10-1/4" (14ga.)	SJC10.25-R15	LS541 LS681 E541 E681 S541 S681 X541 X681	JC1200-68 JC1200-43 JC1400-68 JC1600-68 JH1200-68	UA1112 UA1312 UA1412 UA2212 (16 AND 14GA)	(1.5" or 2") leg x (3" or 4") leg x (12") long x 14 ga.
	2" x 4-1/2" x 10-1/4" (12ga.)	MSJC10.25-R15	LS971 E971 S971	JH1200-97 JC1200-68	UA1112 UA2212 UA1312 (12GA)	Same as above except 12 ga.
	2" x 4-1/2" x 8-1/4" (14ga.)	SJC8.25-R15	LS549 LS689 E549 E689 S549 S689 X549 X689	JC1000-68 JH1000-68	UA119 UA1110 UA229 UA2210 UA139 UA1310 UA149 UA1410 (16&14ga.)	(1.5" or 2") leg x (3" or 4") leg x (10") long x 14 ga.
	2" x 4-1/2" x 8-1/4" (12ga.)	MSJC8.25-R15	LS979 E979 S979 X979	JH1000-97	UA119 UA1110 UA229 UA2210 UA139 UA1310 UA149 UA1410 (12ga.)	Same as above except 12 ga.

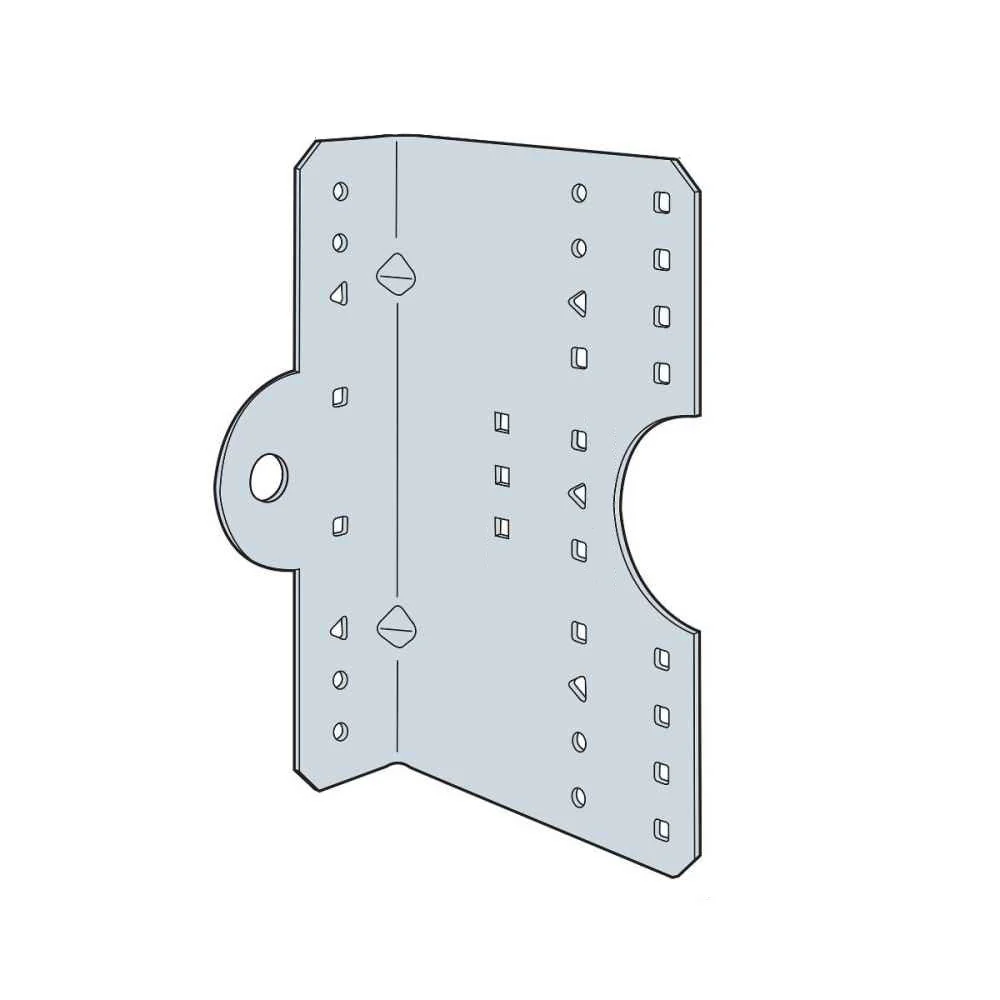

Stud Clips	1-3/8 " x 4" x 6-1/4" (16ga.)	LSSC6.25-R30	LE547 LA547 E547	JH800-43 JC800-43	UA138 UA148 LA338 (16GA.)	(1.5" or 2") leg x (3" or 4") leg x (8") long x 16 ga.
	1-3/8 " x 4" x 6-1/4" (14ga.)	SSC6.25-R30	LE687 LA687 LS687 E687 U687 B687 X687	JH800-68 JC800-68 AL800	UA138 UA148 UA338 (14GA.)	Same as above except 14 ga.
	1-3/8 " x 4" x 6-1/4" (12ga.)	MSSC6.25-R30	LE977 LA977 LS977 E977 U977 B977 X977		UA118 UA228 UA138 UA148 LA338 (12GA.)	Same as above except 12ga.
	1-3/8 " x 4" x 4-1/4" (16ga.)	LSSC4.25-R50	LE545 E545 A546	JH600-43	UA135 UA145 LA335 (16GA.)	(1.5" or 2") leg x (3" or 4") leg x (6") long x 16 ga.
	1-3/8 " x 4" x 4-1/4" (14ga.)	SSC4.25-R50	UCEC UXRC6 LE685 LA685 E685 A686	LB600 LB-HD AL600	UA135 UA145 LA335 (14GA.)	Same as above except 14 ga.
	1-3/8 " x 4" x 4-1/4" (12ga.)	MSSC4.25-R50	UCEC LE975 LA975 E975 U975 X975 B975 A976		UA115 UA225 UA135 UA145 LA335 (12GA.)	Same as above except 12ga.
	2-1/4" x3" x 2-1/4" (14ga.)	SSC2.25-R125	LE543 LE683 LA543 LA683 E543 E683 A543 A683	AL362 JH362-43 JC362-43	UA133 UA143 LA333 BRC4 (16&14GA.)	(1.5" or 2") leg x (2" or 3") leg x (2.5"-3.5") long x 14 ga.
	2-1/4" x3" x 2-1/4" (12ga.)	MSSC2.25-R90	LS973 LE973 LA973 S973 E973 U973 B973 X973 A973	LB362 JH362-68 JC362-68	UA113 UA223 UA133 UA143 LA333 (12GA.)	Same as above except 12ga.
Framing Clips	1-1/2 x 1-3/4 x 6-1/4 (18ga.)	LSFC6.25-R125	NA	NA	NA	(1.5" or 2") leg x (1.5" or 2") leg x (8") long x 16 ga.
	1-1/2 x 1-3/4 x 6-1/4 (16ga.)	SFC6.25-R100	LS547 S547 B547 U547 X548	NA	UA118 UA228 UA138 (16GA.)	Same as above except 14 ga.
	1-1/2 x 1-3/4 x 4-1/4 (18ga.)	LSFC4.25-R175	NA	NA	NA	(1.5" or 2") leg x (1.5" or 2") leg x (6") long x 16 ga.
	1-1/2 x 1-3/4 x 4-1/4 (16ga.)	SFC4.25-R175	LS545 S545 B545 U545 X545	NA	UA115 UA225 UA135 BRC6 (16GA.)	Same as above except 14 ga.
	7/8" x 1-3/4" x 2-1/4" (18ga.)	LSFC2.25-R300	NA	NA	NA	(1.5" or 2") leg x (1.5" or 2") leg x (2.5"-3.5") long x 16 ga.
	7/8" x 1-3/4" x 2-1/4" (16ga.)	SFC2.25-R300	LS543 S543 B543 U543 X543	NA	UA113 UA223 UA133 BRC3 (16GA.)	Same as above except 14 ga.

Rigid Connector Angles

Rigid connector angles from leading manufacturers—Simpson Strong-Tie, ClarkDietrich, The Steel Network (TSN), and MarinoWARE—deliver strong, fixed connections for cold-formed steel framing, including multi-purpose clip angles like RCA, EasyClip X-Series, StiffClip AL/CL, and RCC series. These code-compliant rigid angles provide reliable load transfer, stud-to-structure attachments, reinforcement, and versatile applications in headers, sills, bypass framing, joists, and general steel construction projects. A table with common Rigid Connector Angle Clips can be found below:

**Common Rigid Connector Angles**
Application	Nominal Size/Length/Notes	Simpson Strongtie	ClarkDietrich	TSN	Marino
Rigid Connector Angles	2"x2"x3" (14ga.)	RCA223/68-R125	LS683, S683, U683, B683, X683	L2x2x3-68	UA-223-14, UA-113-14
	2"x2"x3" (12ga.)	RCA223/97-R90	LS973, S973, U973, B973, X973	L2x2x3-97	UA-223-12, UA-113-12
	2"x2"x5" (14ga.)	RCA225/68-R75	LS685, S685, U685, B685, X685	L2x2x5-68	UA-225-14, UA-115-14
	2"x2"x5" (12ga.)	RCA225/97-R55	LS975, S975, U975, B975, X975	L2x2x5-97	UA225-12, UA-115-12
	2"x2"x7" (14ga.)	RCA227/68-R55	LS687, S687, U687, B687, X687	L2x2x7-68	UA-228-14, UA-118-14
	2"x2"x7" (12ga.)	RCA227/97-R40	LS977, S977, U977, B977, X977	L2x2x7-97	UA-228-12, UA-118-12
	3"x3"x3" (16ga.)	RCA333/54-R100	LA543, A543	L3x3x3-54	LA-333-16
	3"x3"x3" (14ga.)	RCA333/68-R85	LA683, A683	L3x3x3-68	LA-333-14
	3"x3"x3" (12ga.)	RCA333/97-R60	LA973, A973	L3x3x3-97	LA-333-12
	3"x3"x5" (16ga.)	RCA335/54-R60	LA545	L3x3x5-54	LA-335-16
	3"x3"x5" (14ga.)	RCA335/68-R50	LA685	L3x3x5-68	LA-335-14
	3"x3"x5" (12ga.)	RCA335/97-R35	LA975	L3x3x5-97	LA-335-12

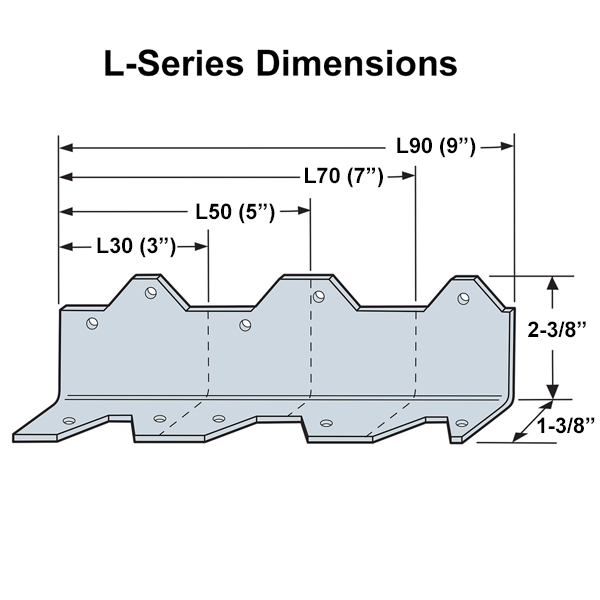

90 Degree Utility Clips	2-3/8"x1-3/8"x3" (16ga.)	L30	LS543, S543, U543, B543, X543	L2x2x3-54	UA-223-16, UA-113-16
	2-3/8"x1-3/8"x5" (16ga.)	L50	LS545, S545, U545, B545, X545	L2x2x5-54	UA-225-16, UA115-16
	2-3/8"x1-3/8"x7" (16ga.)	L70	LS547, S547, U547, B547, X547	L2x2x7-54	UA-228-16, UA118-16
	2-3/8"x1-3/8"x9" (16ga.)	L90	LS549, S549, U549, B549, X549	L2x2x9-54	UA229-16, UA=119-16

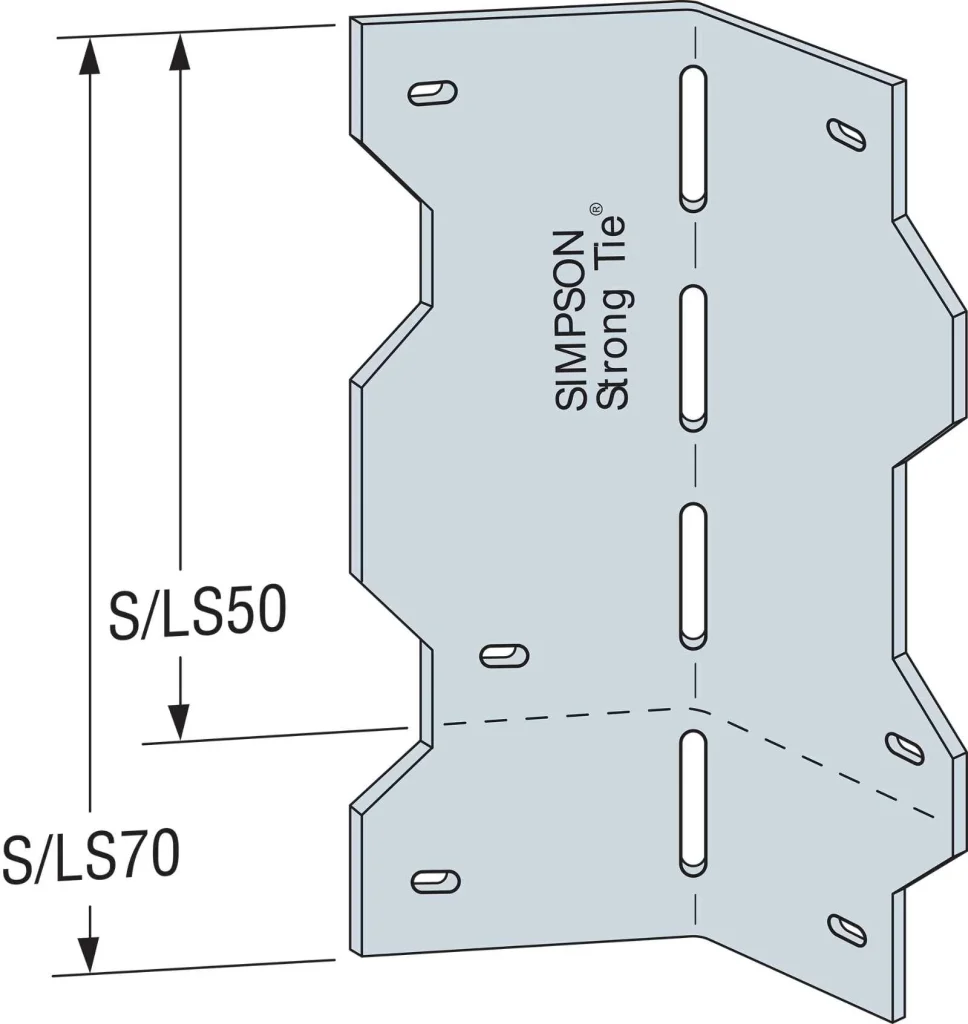

Skewable Utility Clips	2-1/4"x2-1/4"x4-7/8" (18ga.)	S/LS50	N/A	N/A	N/A
Skewable Utility Clips	2-1/4"x2-1/4"x6-3/8" (18ga.)	S/LS70	N/A	N/A	N/A

Knee Wall Clips

Knee wall clips from leading manufacturers—Simpson Strong-Tie, ClarkDietrich, The Steel Network (TSN), and MarinoWARE—provide rigid, high-strength connections for cold-formed steel knee walls, parapets, and partial-height framing in residential, mid-rise, and commercial projects. These code-compliant moment clips (e.g., Simpson RCKW series, ClarkDietrich MC Series, TSN StiffClip CL/MidWall, Marino RCC) resist overturning, shear, uplift, and torsional loads at base-to-foundation ties, ensuring stability, drift accommodation, and fast installation while meeting AISI and ASTM standards. A table including common Knee Wall Clips can be found below:

**Common Knee Wall Connectors**
Application	Nominal Size/Length/Notes	Simpson Strongtie	ClarkDietrich	TSN	Marino

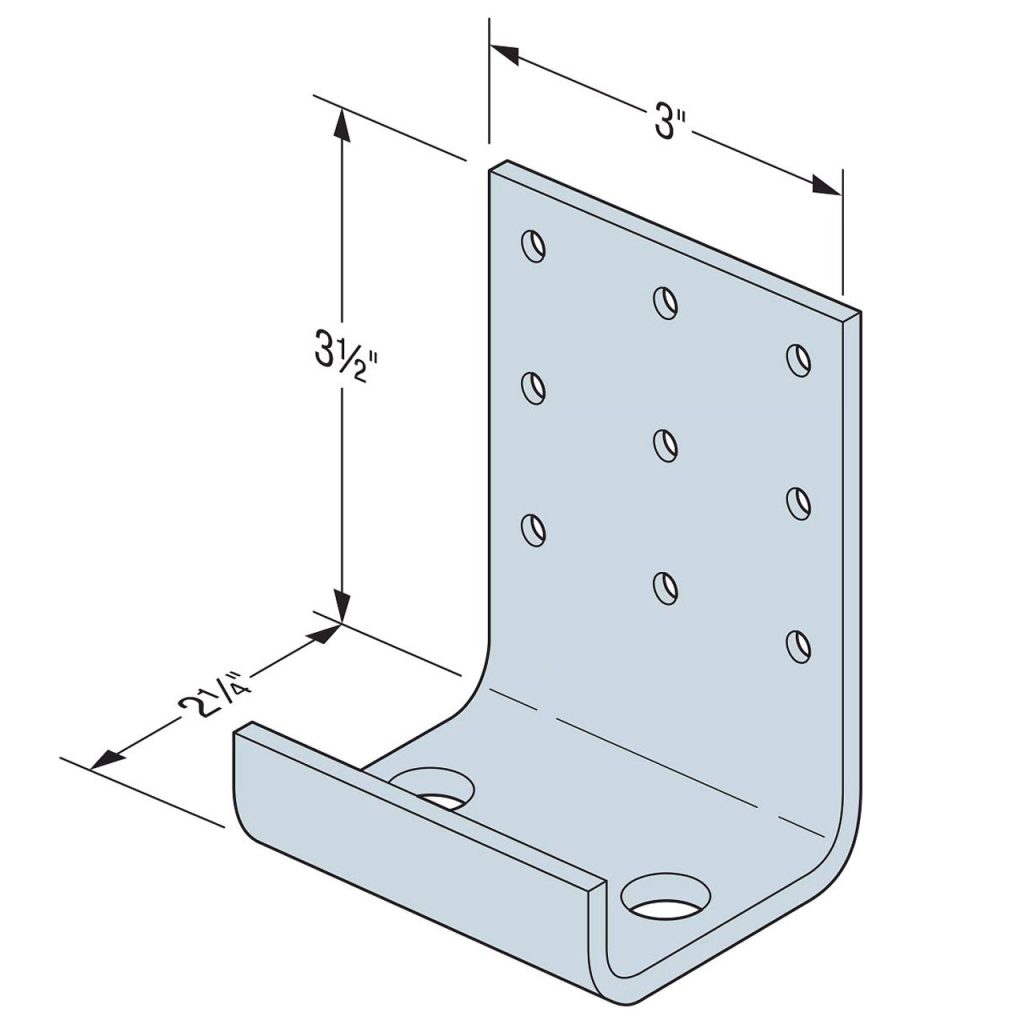

Knee Wall Connectors	2-1/4"x3-1/2"x3" (7ga.)	RCKW3-R10	MC683, MC973, MC103P	CL362-118 362MW3	RCC358
	2-1/4"x3-1/2"x5-1/2"" (7ga.)	RCKW5.5-R10	MC685, MC975, MC105P	CL600-118 600MW3	RCC600
	2-1/4"x3-1/2"x7-1/2" (7ga.)	RCKW7.5-R10	MC687, MC977, MC107P	CL800-118 800MW3	RCC800

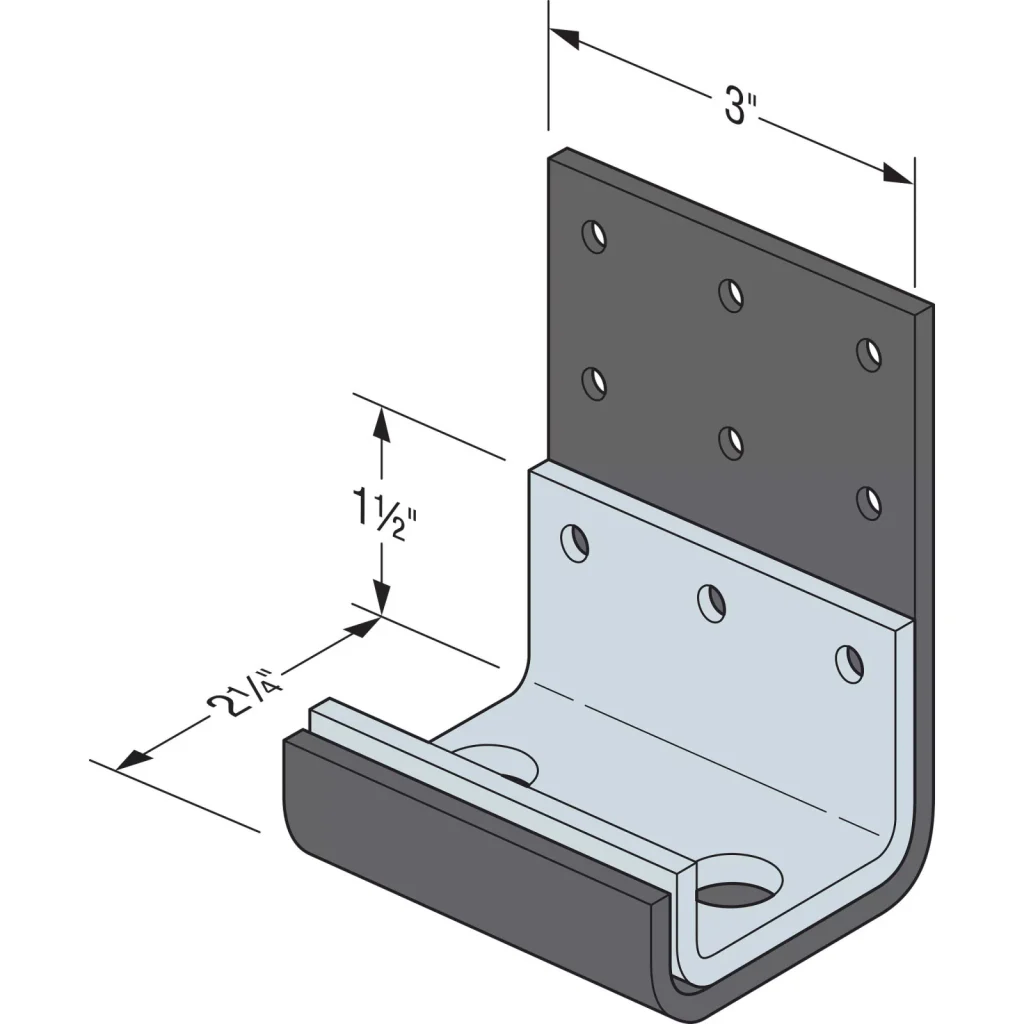

	2-1/4"x1-1/2"x3" Stiffener for RCKW3	RCKW3S-R10	N/A (Stiffener Sold With Above Parts)	CL (H) Plate	HDW3.25
	2-1/4"x1-1/2"x5-1/2" Stiffener for RCKW5.5 and RCKW7.5	RCKW5.5S-R10	N/A (Stiffener Sold With Above Parts)	CL (H) Plate	HDW5.25 HDW7.75
	1-3/8 " x 4" x 4-1/4" (12ga.) with 1/2" x 3" Bearing Plate	MSSC4.25KW-KT20	D685 D975 T685 T975	CL600-68	RCC600
	1-3/8 " x 4" x 6-1/4" (12ga.) with 1/2" x 3" Bearing Plate	MSSC6.25KW-KT20	NA	CL800-68	RCC800

Holdowns/ Joist Hangers

Holdowns and joist hangers from leading manufacturers—Simpson Strong-Tie, ClarkDietrich, The Steel Network (TSN), and MarinoWARE—provide critical structural support in cold-formed steel framing for floors, walls, and roofs. Holdowns (tension ties) resist uplift and overturning forces at wall bases or shear walls, while joist hangers (e.g., Simpson S/HJCT, ClarkDietrich UJH, Marino JoistRite bridle hangers, TSN equivalents) securely connect floor joists to headers, beams, or supporting members, ensuring load transfer, stability, and code-compliant performance in mid-rise, commercial, and residential projects. A table including common Holdowns/ Joist Hangers can be found below:

**Common Holdowns and Joist Hangers**
Application	Nominal Size/Length/Notes	Simpson Strongtie	ClarkDietrich	TSN	Marino
Steel Joist Connector	8"-14" Joists	S/JCT	UJH	JC362/400-68, JC362/400-97	S/HJCT
Steel Joist Connector		S/HJCT-KT (with #14 screws)	CDBV-1	StiffClip JH	BH
S/BA-Series Joist Hangers (14 ga. Non-Skewable)	8"-14" Joists (2" and 4" Seat Widths)	S/BA2.12/8	E Series, S Series	StiffClip JH	N/A
		S/BA2.12/10
		S/BA2.12/12
		S/BA2.12/14
		S/BA4.18/8
		S/BA4.18/10
		S/BA4.18/12
		S/BA4.18/14
S/HDU Holdowns	7-7/8"	S/HDU4	CD8 (11")	StiffClip TD	N/A
	10-3/8"	S/HDU6	CD10 (13-1/2")
	12-7/8"	S/HDU9
	16-5/8"	S/HDU11	CD15 (19")
S/HDS Holdowns (Screw Attached)	11"	S/HD8S	CD8	StiffClip TD	N/A
	13-1/2"	S/HD10S	CD10
	17"	S/HD15S	CD15
S/HDB Holdowns (Bolt Attached)	11"	S/HD8B	CD8	StiffClip TD	N/A
	13-1/2"	S/HD10B	CD10
	17"	S/HD15B	CD15
Misc. Tension Ties	7"	S/DTT2Z	EasyClip TP/TPA	StiffClip PL	N/A
	20"	S/LTT20	AS Series	StiffClip FS
	12-3/8"	HTT4		StiffClip RT
	16"	HTT5
#14-14 Screws (Sold Separately for Holdowns)	Pack of 100 Screws	E1B1414R100	N/A	N/A	N/A
#14-14 Screws (Sold Separately for Holdowns)	Box of 2500 Screws	E1B1414B	N/A	N/A	N/A

Common Fasteners

Common Fasteners for Cold-Formed Steel Framing – Self-Drilling Screws, Tek Screws, Framing Screws & Connectors for Metal Stud Walls & CFS Construction

Common fasteners in cold-formed steel framing (also referred to as metal framing fasteners, CFS screws, self-drilling screws, self-tapping screws, Tek screws, drill point screws, framing screws, structural screws, pancake head screws, wafer head screws, bugle head screws, low-profile screws, and cold-formed steel connectors) are essential corrosion-resistant hardware used to securely join light-gauge steel studs, tracks, joists, trusses, bridging, clips, deflection tracks, headers, bypass framing, and drywall assemblies in residential, commercial, industrial, mid-rise, and high-rise construction.

These high-strength fasteners, with coatings like zinc, or zinc-aluminum, enable fast, reliable connections without pre-drilling in most cases, ensuring code-compliant performance under wind, seismic, axial, and shear loads in non-load-bearing partitions, load-bearing walls, curtain walls, exterior bypass systems, floor and roof diaphragms, and suspended ceiling grids.

The most widely used types include:

Self-drilling Tek screws (#8, #10, #12 drill point) for attaching studs to tracks, bridging channels, clips, and furring channels
Self-tapping screws for thinner gauges or pre-punched connections
Pancake head / low-profile head screws for flush attachments in tight spaces
Wafer head screws for bridging and clip-to-stud connections
Bugle head drywall screws (fine or coarse thread) for attaching gypsum board, sheathing, or cement board to metal studs
Structural self-drilling screws (larger diameters, longer lengths) for heavier gauge framing, headers, and load-bearing applications
Hex washer head screws for high-torque installations and exterior exposures
Collated screws for use with automatic screw guns to speed up drywall and panel installation

These cold-formed steel fasteners (meeting ASTM C954, C1002, or ICC-ES reports) provide superior pull-out, shear, and withdrawal strength compared to nails or traditional wood fasteners, reduce labor time, minimize stripping, and support fire-rated, sound-rated, wind-loaded, and seismic-resistant assemblies in modern metal stud framing, light-gauge steel construction, and drywall systems. Whether building office interiors, retail spaces, schools, hospitals, warehouses, multi-family housing, or commercial curtain walls, common steel framing fasteners remain the go-to choice for durable, efficient, and engineer-approved connections in today’s CFS projects.
